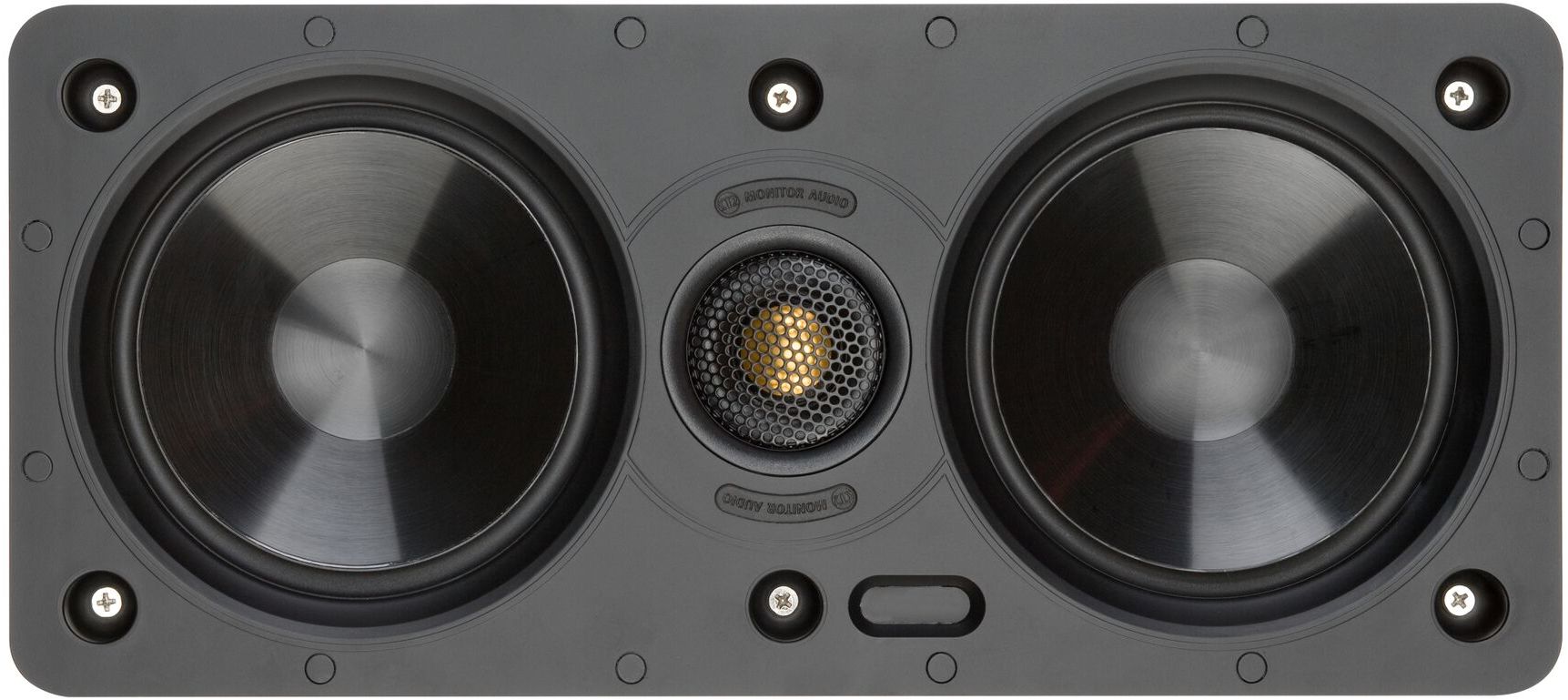

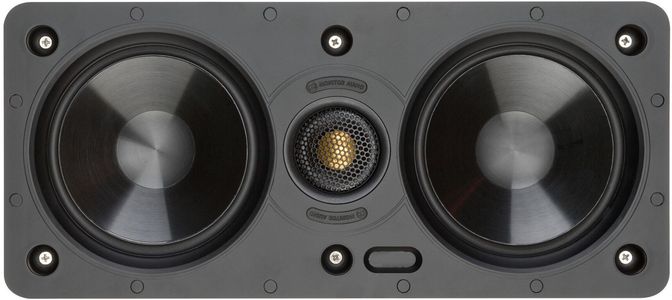

The 2-way W150-LCR in-wall model with 5-inch drivers features Monitor Audio's MMP II cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.Read More
Call or Chat Now forBest Price Options and Stock
These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.
5-inch drivers
MMP II cones
C-CAM Gold Dome tweeter
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 8.3 |
| Frequency Response | 60 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 100 |
| Color | Black |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 100 |
| Number of Speakers | 1 |
| Sensitivity | 88 |
| Speaker Type | In-Wall Speakers |
Additional Specification | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 108 dBA |
| Power Handling (RMS) | 100 W |
| Recommended Amplifier Requirements | 30 – 100 W |
| Drive Unit Complement | 2 x 5" MMP II cone bass driver, 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter |
| Overall Dimensions (Including Grille (H x W x D)) | 177.4 x 385.2 mm (7 x 15 3/16") |
| Overall Depth (Including Grille) | 105 mm (4 1/8") |
| Mounting Depth | 100 mm (3 15/16") |
| Cut-Out Dimensions | 145 x 353 mm (5 3/4" x 13 7/8"), Required Clearance for Doglegs in Centre Configuration 400 x 197mm (15 3/4" x 7 3/4") |
| Fixing Type | Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3.76 kg (8.3 lb) |
| Pre-Construction Bracket | WB5LCR Pre-Construction Bracket (Yellow) |
