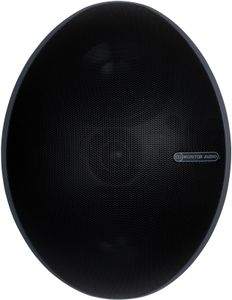

The stylish, compact and versatile Monitor Audio Vecta V240 speaker cleverly combines architectural aesthetics with innovation and the high quality professional audio performance that the company is renowned for.
The Vecta V240 offers incredible versatility and simple installation. Using cleverly designed brackets and a single point automatic connection system, Vecta can be quickly and easily mounted horizontally or vertically. Installers fix the bracket to the wall, and then simply drop the speaker in place and secure with a single screw. Not only does this installation method save integrators’ time, but it also simplifies the complexity of installing speakers at height or at difficult angles. An automatic connection system means that the install is extremely sleek, with no wires visible. To ensure clients receive the best audio possible, when mounted to the wall bracket, Vecta can be angled by 25 degrees or tilted a further 32.5 degrees (using the optional wedge) to direct the audio to the desired location.
When installing speakers outside, a different approach is required, as these systems need to be capable of delivering a high quality audio standard in external conditions and locations. For the Vecta V240, Monitor Audio has mounted dual 4" C-CAM metal cone drives to the curved baffle to ensure a controlled sound field is delivered. This minimises ceiling or wall reflections when mounted under eaves or in a corner, while still being wide enough for superior coverage when wall-mounted. The centrally mounted C-CAM tweeter is horn loaded to ensure dispersion at the crossover point matches the mid-range, providing a smooth off axis frequency response. This approach results in the ultimate audio experience, with fewer audio black spots.
The aesthetics match the performance of this speaker, as Monitor Audio has paid close attention the design. Developed with a curved tapered back cabinet in black or white, the Vecta V240 blends seamlessly under eaves or in vertical corners. The speakers are cased in a high-density ABS enclosure with rust proof grille that is designed to withstand extreme environmental exposure. The completely sealed box cabinet is free from air noise or potential ingress of water and dirt, which helps to maintain the IP55 environmental protection rating.
|System Format||2-way (3 driver)|
|Frequency Response (-6 dB)||70 Hz – 25 kHz|
|Sensitivity (1W@1M)||88 dB|
|Nominal Impedance||4 ohms|
|Minimum Impedance||3.8 ohms @ 240 Hz|
|Maximum SPL||108 dBA (each)|
|Power Handling (RMS)||100 W|
|Recommended Amplifier Requirements||25 – 100 W|
|Bass Alignment||Sealed cabinet|
|Crossover Frequency||2.5 kHz|
|Connection||Gold plated push terminals – attached to bracket|
|Environmental Protection Rating||IP55 -25° to 65° C / -13° to 149° F|
|Bracket Pivot Angle||Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45.|
|Drive Unit Complement||2 x 4" Drivers featuring C-CAM metal cone technology, 25 mm (1") C-CAM dome tweeter|
|Dimensions (H x W x D)||336 x 243.2 x 150 mm (13 1/4 x 9 9/16 x 5 7/8")|
|Weight||2.55 kg (5 lb 10 oz)|
|Finishes||Black or White (Signal White, RAL 9003)|
|Color Finish Name||Black|
|Frequency Response||70 Hz – 25 kHz|
|Manufacturer Warranty||Limited Lifetime|
|RMS Power Handling (Watts)||100|
|Maximum Power Handling (Watts)||100|
|Number of Speakers||1|
|Speaker Type||On-Wall Speakers|
