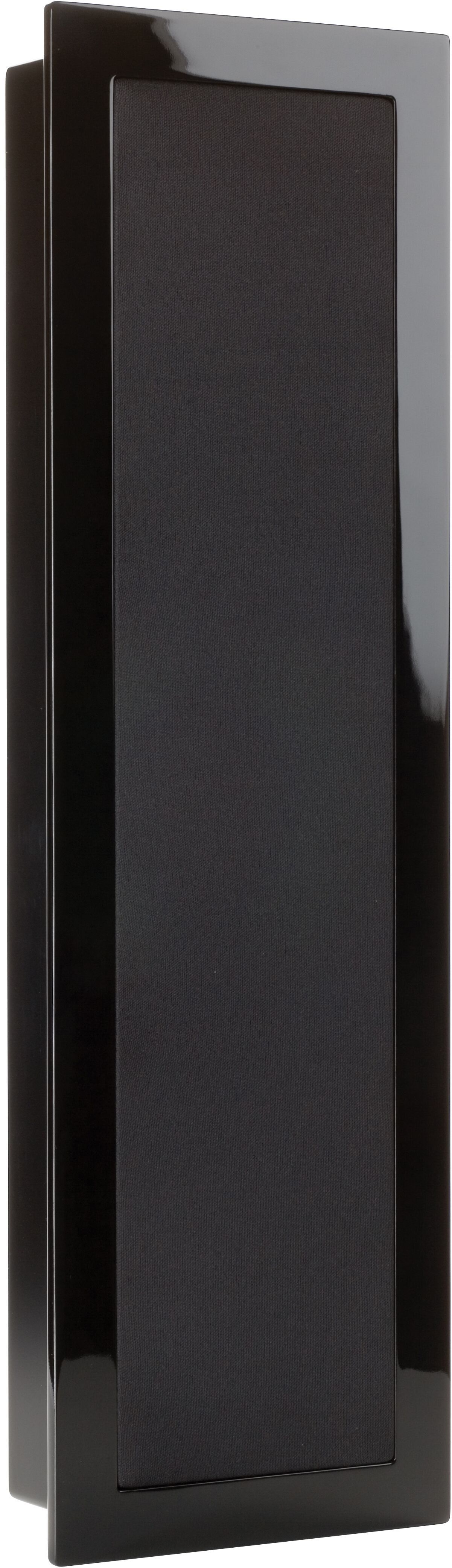

Monitor Audio SoundFrame 2 Gloss Black On-Wall Speaker
At a Glance
The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 2 On-Wall is a longer centre channel speaker designed for visual harmony with thin televisions or projection screens and can also be placed in a vertical position to match larger displays.
Proposition 65 Warning for California Residents
Additional Specifications
| Frequency Response | 55 Hz — 35 kHz |
|---|---|
| Sensitivity (1W@1M) | 86 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | 100 W |
| Maximum SPL | 106 dBA |
| Recommended Amplifier Requirements | 25 — 100 W |
| Bass Alignment | Sealed Box |
| Crossover Frequency | 550 Hz & 3.3 kHz |
| System Configuration | 3-Way |
| Drive Unit Complement | 1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST, 1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter |
| Dimensions (Including Frame (H x W x D)) | 790 x 240 x 87.5 mm (311/8 x 97/16 x 37/16") |
| Depth From Wall | 87.5 mm (37/16") |
| Weight (packaged) | 7.06 kg (15.53 lbs) |
Misc. Specs
| Product Weight (lbs.) | 15.53 |
|---|---|
| Frequency Response | 55 Hz - 35 kHz |
| Color Finish Name | Gloss Black |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 100 |
| Color | Black |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 100 |
| Number of Speakers | 1 |
| Sensitivity | 86 |
| Speaker Type | On-Wall Speakers |
| Depth (in.) | 3.44 |
| Height (in.) | 31.13 |
| Width (in.) | 9.44 |
Monitor Audio SoundFrame 2 Gloss Black On-Wall Speaker
Model #: SF2B
Call or Chat Now for
Best Price Options and Stock
At a Glance
Get to know this product.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 2 On-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Quick and easy installation.
Slender 87 mm (3.5") cabinet depth.
Choice of high gloss white or black lacquer frames.
SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
High frequency attenuation +- 3 dB.
Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
This product is now available to use with home theatre design software, The CEDIA Designer.
*SoundFrame 2 On-Wall Speaker Only, Visual Is For Representative Purposes Only.
