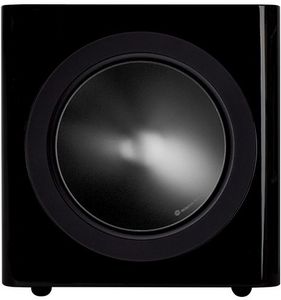

Monitor Audio Radius 390 Black Gloss Subwoofer

Monitor Audio

Model #:

R390BL

Model #: R390BL
254741
Monitor Audio
$99,999.00

At a Glance

Product Dimensions 13.69"h x 13"w x 12.56"d

The Radius 390 comprises of colour-coded 10" C-CAM active/ABR drivers, powered by a 200 W Class D amplifier. Enjoy rapid EQ optimisation from Impact, Music and Movie settings, and system automation via the 12 V trigger.Read More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

Technology

18 mm MDF cabinet construction with internal bracing

Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)

Twin side-firing 10" C-CAM drivers - one active and one passive ABR

Low pass filter switch – for LFE or Stereo input selection

Power switch with ON – Auto- Off/ trigger settings

Stereo/ LFE RCA inputs

3 x Pre-set EQ settings – Music/Movie/Impact

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Manual
Initial Set Up Guide
Brochure
Specifications

General Specs

Product Weight (lbs.)30.285
ColorBlack
Depth (in.)12.56
Width (in.)13
Height (in.)13.69
Maximum Power Handling (Watts)200
Manufacturer Warranty5 Year
Color Finish NameBlack Gloss
RMS Power Handling (Watts)200

Additional Specifications

System FormatActive sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet
Lower Frequency Limit30 Hz (- 6 dB)
Upper Frequency LimitVariable 40 – 120 Hz @ 24 dB/Octave
Amplifier Output200 Watts @ 1% THD+N
Amplifier ClassificationClass D amplifier with Switch mode power supply (SMPSU)
Bass EQ ProfilesMusic / Movie / Impact
Phase Control0 & 180 degrees
Auto SensingLine Level >3.5mV
Input Level RequirementsStandby after approximately 15 minutes if no signal sensed
Drive Unit Complement1 x 10" (250 mm) C-CAM long throw driver 1 x 10" (250 mm) ABR
Input Impedance> 20 ohms
Mains Input VoltageAC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)
Dimensions (Including Amp and Feet (H x W x D))348 x 330 x 345 mm (13 11/16 x 13 x 12 9/16")
ConnectionStereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)
Trigger Input5 - 12v via 3.5mm mono mini-jack socket
Power Consumption200 Watts / 0.5 Watts in Standby (ErP approved)
Weight (unpacked)13.76 kg (30 lb 4 oz)
