The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.Read More
Call or Chat Now forBest Price Options and Stock
Delivering great imaging and dynamics from a brilliantly compact design
Perfect for high performance, ultra-discreet custom-installed systems

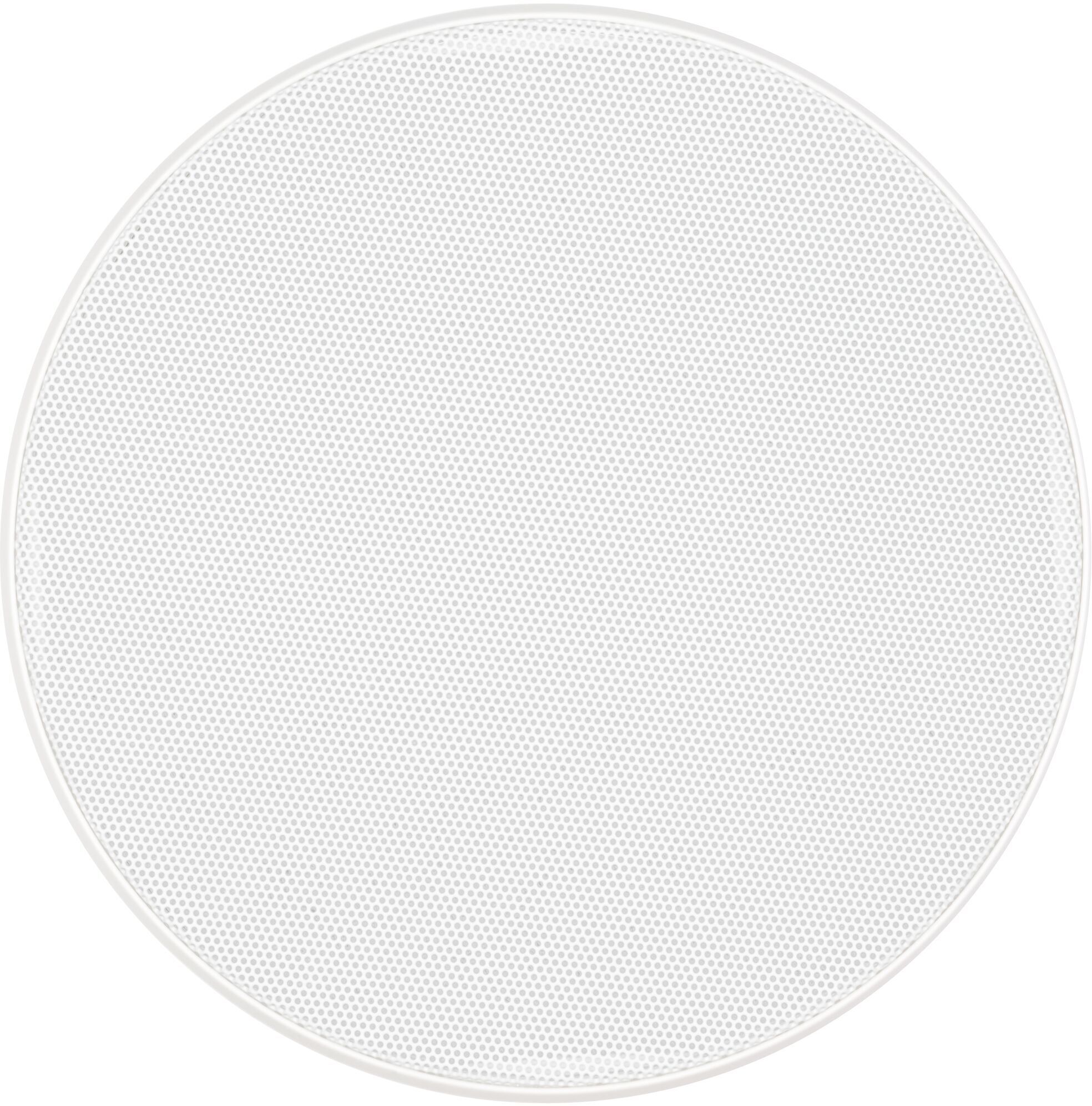

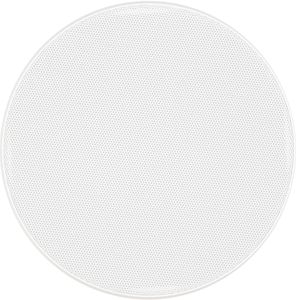

Round Grille
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 4.63 |
| Frequency Response | 60 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 70 |
| Color | Black/Orange |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 70 |
| Number of Speakers | 1 |
| Sensitivity | 88 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 107.2 dBA |
| Power Handling (RMS) | 70 W |
| Recommended Amplifier Requirements | 15 – 70 W |
| Drive Unit Complement | 1 x 6" MMP II cone bass driver., 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter |
| Acoustic Configuration | 2-way |
| Overall Dimensions (Including Grille (H x W)) | Round: 204.2 mm (8 1/16") |
| Mounting Depth | 99 mm (3 7/8”) |
| Cut-Out Hole Diameter | 170 mm (6 11/16”) |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Connection | Gold plated ‘push’ type terminals |
| Grille Attachment | Magnetic |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.10 kg (4 lb 10 oz) |
| Pre-Construction Bracket | CB5 Pre-Construction Bracket (Blue) |
| Back Box | CCBOX-R | CMBOX-R |
