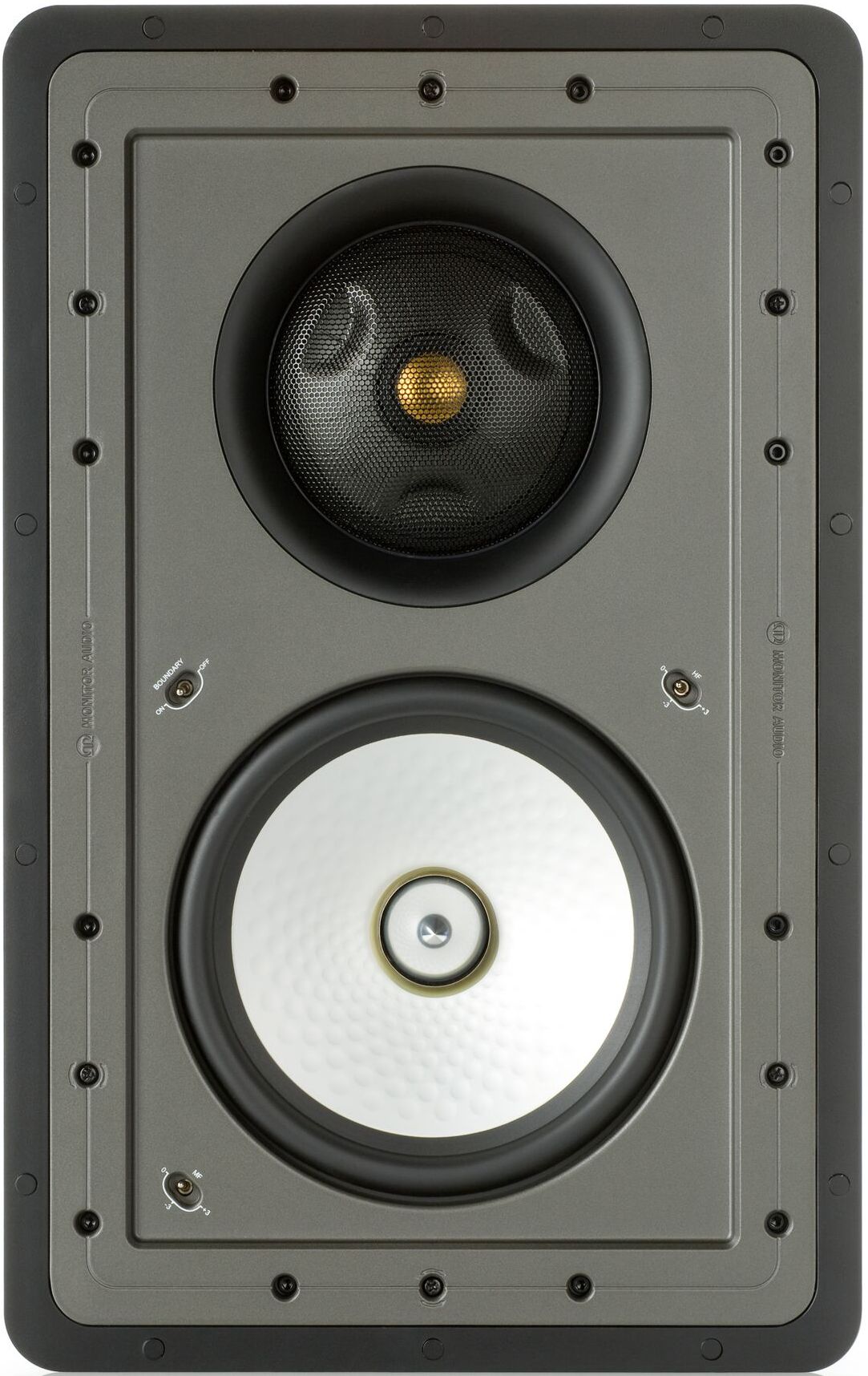

Monitor Audio CP-WT380IDC In-Wall Speaker

Model #: CPWT380IDC

At a Glance

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

WarningProposition 65 Warning for California Residents
Monitor Audio CP-WT380IDC In-Wall Speaker

Misc. Specs

Product Weight (lbs.)12.38
Frequency Response50 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)120
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)120
Number of Speakers1
Sensitivity89
Speaker TypeIn-Wall Speakers

Additional Specifications

Frequency Response50 Hz - 30 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)89 dB
Maximum SPL109.6 dBA
Power Handling (RMS)120 W
Recommended Amplifier Requirements30 - 120 W
Crossover FrequencyBass low pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave
Drive Unit Complement3-Way, 8" C-CAM RST cone bass driver, 4" C-CAM IDC cone mid range driver, 1" C-CAM Gold Dome tweeter , (tweeter & midrange driver combined in a pivoting module)
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+3 dB/ 0 dB/ -3 dB) , Boundary Compensation Switch
Overall Dimensions (H x W x D)472.5 x 303.5 mm (18 5/8 x 11 15/16")
Overall Depth (Including Grille)106 mm (4 3/16")
Cut-Out Dimensions438 x 269 mm (17 1/4 x 10 9/16")
Mounting Depth99 mm (3 7/8")
Fixing Type6 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled ABS Plastic (RoHS2 Compliant)
Weight5.62 kg (12 lb 6 oz)
Pre-Construction BracketWB10 Pre-Construction Bracket (Light Brown)
BADGE

Monitor Audio CP-WT380IDC In-Wall Speaker

Model #: CPWT380IDC
Call for Best Price

Call or Chat Now for

Best Price Options and Stock

At a Glance

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

Get to know this product.

Pivoting IDC C-CAM gold dome tweeter.

Pivoting module consisting of IDC midrange driver and C-CAM Gold Dome tweeter.

C-CAM bass driver featuring Rigid Surface Technology (RST).

High overall efficiency.

High frequency level adjustment (+/-3 dB).

Midrange frequency level adjustment.

Boundary compensation controls.

Die-cast aluminium front baffle.

Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

Magnetic and easily removable steel grille.

Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.

Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Additional Specifications

Frequency Response50 Hz - 30 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)89 dB
Maximum SPL109.6 dBA
Power Handling (RMS)120 W
Recommended Amplifier Requirements30 - 120 W
Crossover FrequencyBass low pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave
Drive Unit Complement3-Way, 8" C-CAM RST cone bass driver, 4" C-CAM IDC cone mid range driver, 1" C-CAM Gold Dome tweeter , (tweeter & midrange driver combined in a pivoting module)
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+3 dB/ 0 dB/ -3 dB) , Boundary Compensation Switch
Overall Dimensions (H x W x D)472.5 x 303.5 mm (18 5/8 x 11 15/16")
Overall Depth (Including Grille)106 mm (4 3/16")
Cut-Out Dimensions438 x 269 mm (17 1/4 x 10 9/16")
Mounting Depth99 mm (3 7/8")
Fixing Type6 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled ABS Plastic (RoHS2 Compliant)
Weight5.62 kg (12 lb 6 oz)
Pre-Construction BracketWB10 Pre-Construction Bracket (Light Brown)

Misc. Specs

Product Weight (lbs.)12.38
Frequency Response50 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)120
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)120
Number of Speakers1
Sensitivity89
Speaker TypeIn-Wall Speakers
