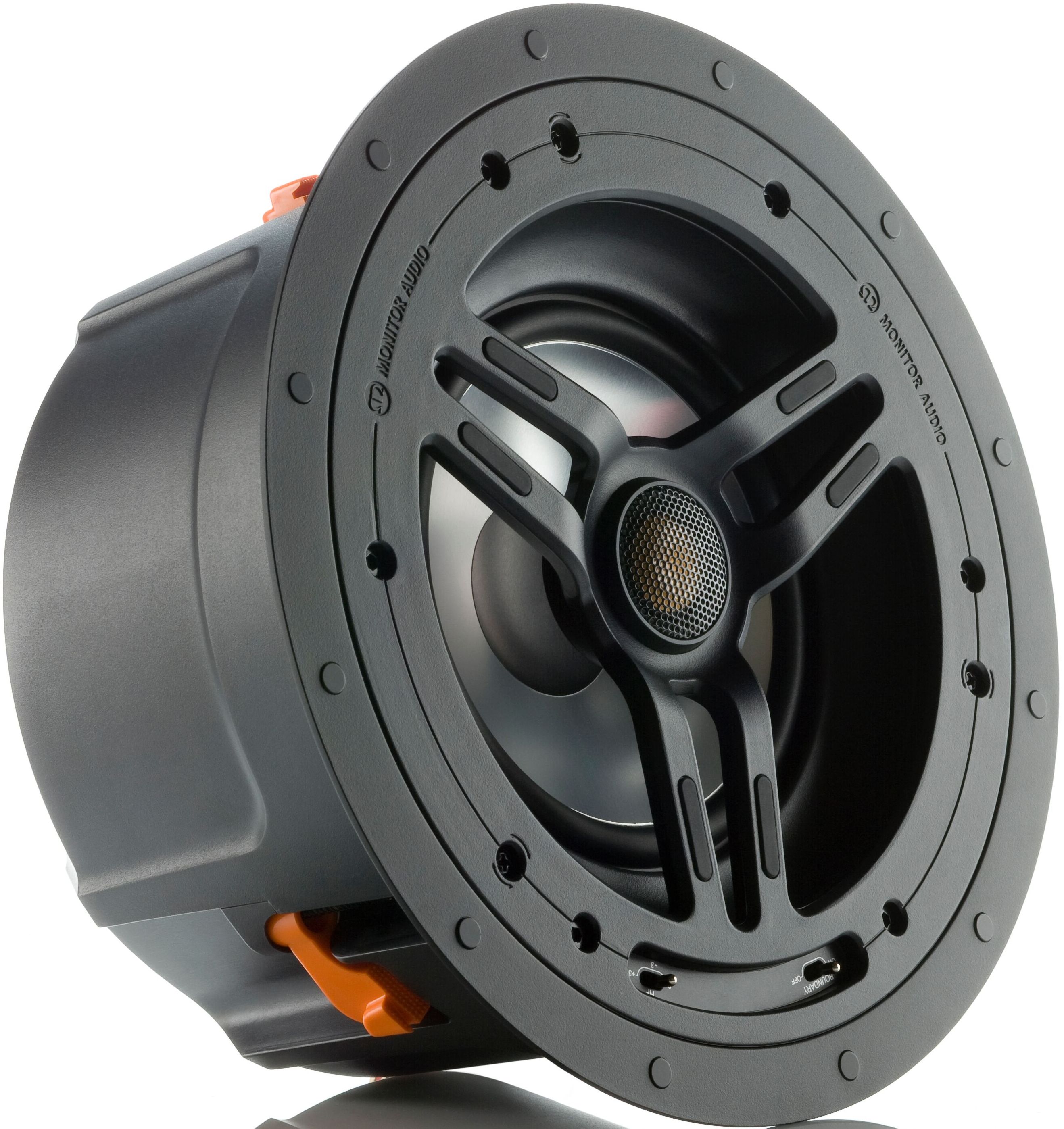

The CP-CT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.Read More
Call or Chat Now forBest Price Options and Stock
Optional square grille can be used with this model.
Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
High overall efficiency.
High frequency level adjustment (+/-3 dB).
Boundary compensation controls.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 6.13 |
| Frequency Response | 66 Hz - 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 65 |
| Color | Black |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 65 |
| Number of Speakers | 1 |
| Sensitivity | 88 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 66 Hz - 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 106.9 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amplifier Requirements | 20 - 65 W |
| Crossover Frequency | 2.6 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2-Way, 6" C-CAM cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch, (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Overall Depth (Including Grille) | 155 mm (6 1/8") |
| Cut-Out Hole Diameter | 244 mm (9 5/8") |
| Mounting Depth | 151 mm (5 15/16") |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm (11 1/4") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 2 kg (6 lb 2 oz) |
| Connection | Gold plated 'push' type terminals |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
| Back Box | CCBOX-L |
