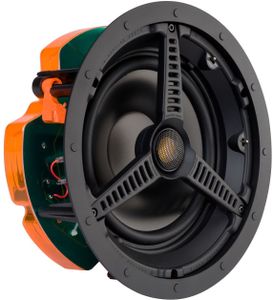

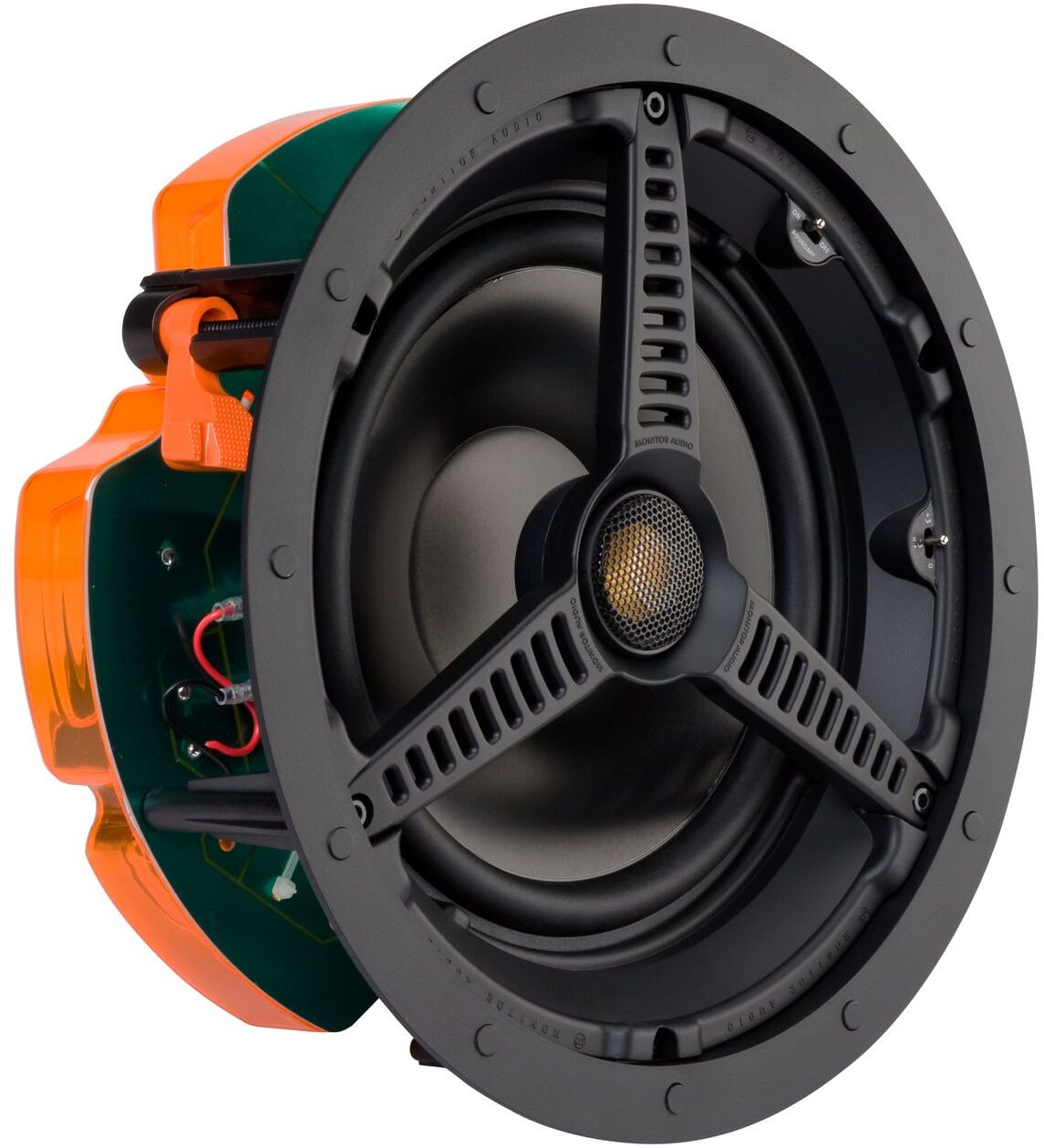

Monitor Audio C280 In-Ceiling Speaker

Model #: CC280
273146
Monitor Audio
At a Glance

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.

Call for Best Price
$99,999.00Save $NaN

Call or Chat Now for

Best Price Options and Stock


Get to know this product.

  • Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment
  • Boundary compensation (on / off) controls
  • Optional square grille can be used with this model.
Specifications

Additional Specifications

Frequency Response50 Hz – 30 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)90 dB
Maximum SPL111.6 dBA
Power Handling (RMS)120 W
Recommended Amplifier Requirements30 – 120 W
Drive Unit Complement8" C-CAM cone bass driver, 1" C-CAM pivoting Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch
Overall Diameter (Including Grille)285 mm (11 1/4")
Overall Depth (Including Grille)126 mm (4 15/16")
Mounting Depth122 mm (4 13/16")
Cut-Out Hole Diameter247 mm (9 3/4")
Optional Square Grille - Outer Dimensions285 x 285 mm (11 1/4")
Fixing Type3 position Tri-Grip dog fixings
Construction MaterialMineral filled ABS, RoHS compliant
Weight2.8 kg (6 lb 2 oz)
Pre-Construction BracketCB8 Pre-Construction Bracket (Green)
Back BoxCCBOX-R / CMBOX-R

Misc. Specs

Product Weight6.13
Frequency Response50 Hz – 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)120
Impedance6 ohms
Maximum Power Handling (Watts)120
Number of Speakers1
Sensitivity90
Speaker TypeIn-Ceiling Speakers
