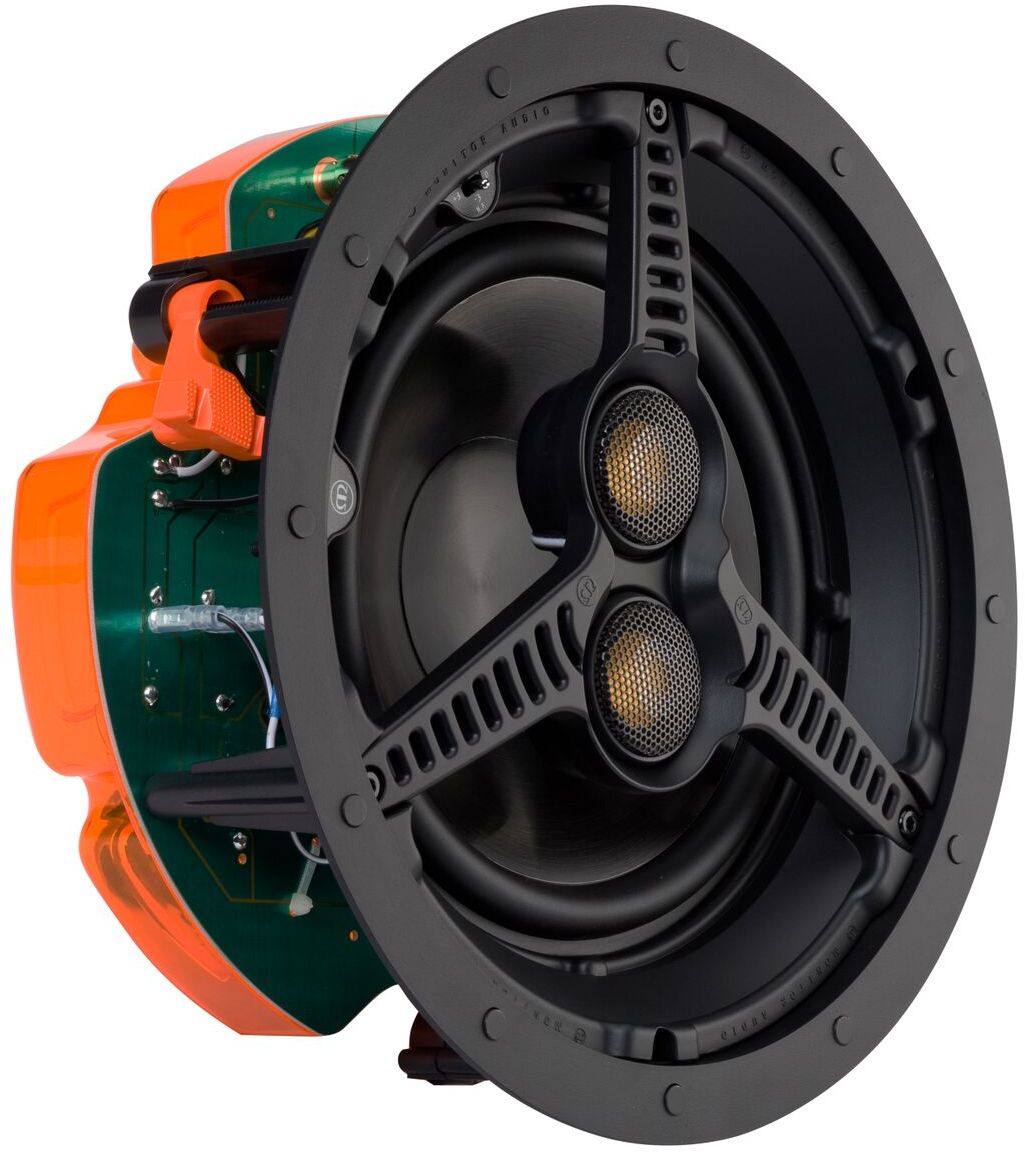

Monitor Audio C180-T2 In-Ceiling Speaker

Monitor Audio

Model #:

CC180T2

Model #: CC180T2
273043
Monitor Audio
$99,999.00

At a Glance

Features dual, independent, pivoting 1-inch C-CAM tweeters and an 8-inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.Read More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

Ideal for bathrooms, hallways, or any area where space does not allow for stereo pairs.

Optional square grille can be used with this model.

8-inch MMP II dual wound voice coil bass driver.

Useful Documents
Installation Guide
Manual
Warranty
Safety Instructions
Specifications

General Specs

Product Weight (lbs.)6.6
Frequency Response50 Hz – 25 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)120
ColorBlack/Orange
Impedance6 ohms
Maximum Power Handling (Watts)120
Number of Speakers1
Sensitivity90
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response50 Hz – 25 kHz
Nominal Impedance6 + 6 ohms
Sensitivity (1W@1M)90 dB
Maximum SPL111.6 dBA
Power Handling (RMS)120 W
Recommended Amplifier Requirements30 – 120 W
Drive Unit Complement8" MMP II cone bass driver, 2 x 1" C-CAM pivoting Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)285 mm (11 1/4")
Overall Depth (Including Grille)126 mm (4 15/16")
Mounting Depth122 mm (4 13/16")
Cut-Out Hole Diameter247 mm (9 3/4")
Fixing Type3 position Tri-Grip dog fixings
Optional Square Grille - Outer Dimensions285 x 285 mm (11 1/4")
Construction MaterialMineral filled ABS, RoHS compliant
Weight3 kg (6 lb 10 oz)
Pre-Construction BracketCB8 Pre-Construction Bracket (Green)
Back BoxCCBOX-R / CMBOX-R
