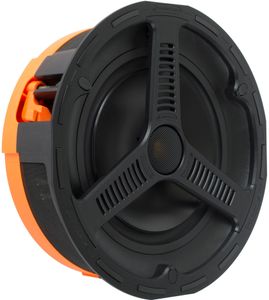

Monitor Audio AWC280-T2 Weather Resistant In-Ceiling Speaker

Monitor Audio

Model #:

AWC280T2

Model #: AWC280T2
272953
Monitor Audio
$99,999.00

At a Glance

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC280-T2 to deliver high performance stereo sound from a single unit where space is limited.Read More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

Optional square grille can be used with this model.

High Performance C-CAM bass and high frequency drivers

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion

Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion

IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion

Patented Tri-grip Dog-leg fixings for easy, long-lasting installation

EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)

Gold plated push terminals with silicon cover

Stainless fixing screws with Silicone covers

Tweeter level attenuation (internal) – set prior to installation

Applications: pool rooms, bathrooms, marine deck, universal outdoor installation

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Brochure
Install Installation
Manual
Lifetime Warranty
Safety Instructions
Specifications

General Specs

Product Weight (lbs.)6.13
Frequency Response50 Hz — 30 kHz
Outdoor ApprovedYes
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)100
ColorBlack/Orange
Impedance8 ohms
Maximum Power Handling (Watts)100
Number of Speakers1
Sensitivity89
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response50 Hz — 30 kHz
Sensitivity (1W@1M)89 dB (both channels open)
Nominal Impedance8 + 8 ohms
Maximum SPL109 dBA
Power Handling (RMS)100 W
Recommended Amplifier Requirements20 — 100 W
Drivers8" C-CAM cone bass driver, 2 x 1" C-CAM Gold Dome tweeter (fixed angle)
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Connection2 x (2 pair) Gold plated push style terminal
Overall Diameter (Including Grille)285 mm (11 1/4")
Overall Depth (Including Grille)102.5 mm (4 1/32")
Cut-Out Hole Diameter247 mm (9 3/4")
Mounting Depth97.55 mm (3 7/8")
Optional Square Grille - Outer Dimensions285 x 285 mm (11 1/4")
Fixing Type3 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
GrilleSS430 Stainless Steel
MagnetsSamarium Cobalt
Operating Temperature Range-34° to 79° C -29° to 174° F
Weight2.8 kg (6 lb 2 oz)
Pre-Construction BracketCB8 Pre-Construction Bracket (Green)
Back BoxCCBOX-R | CMBOX-R
WarningProposition 65 Warning for California Residents
