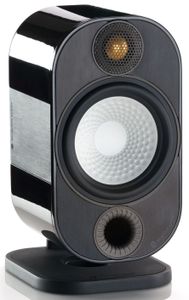

Monitor Audio Apex Series Black High Gloss Bookshelf Speaker


Model #:

AX10B

Model #: AX10B
252619
Monitor Audio
$99,999.00

At a Glance

Product Dimensions 5.5"h x 9.81"w x 5.5"d

The ultimate style speaker, combining the best of Monitor Audio technology in a stylish, compact and rigid die-cast alloy cabinet.Read More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview
Technology

51/2" C-CAM Driver with RST dimpled cone geometry for rigidity

1" Gold C-CAM Tweeter

HiVe II High Velocity reflex port; delivers smoother airflow for better transient response and tighter bass

Dedicated Internally Wired Stand available

Can be mounted on wall, ceiling or table top with dedicated robust bracket

Magnetic Grilles; for the sleekest effect there are no visible fixings

Rigid die-cast alloy cabinet

Finished in luxurious metallic black high gloss or metallic pearl white high gloss

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)8.75
Color Finish NameBlack High Gloss
Manufacturer Warranty5 Year
RMS Power Handling (Watts)100
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)100
Number of Speakers1
Depth (in.)5.5
Height (in.)5.5
Width (in.)9.81
Woofer Size5"

General

Frequency Response60 Hz — 35 kHz
Sensitivity (1W@1M)87 dB
Drive Unit Complement1 x 140 mm (5.5") RST mid-bass driver, 1 x 25 mm (1") C-CAM Gold Dome tweeter
Nominal Impedance8 ohms
Maximum SPL110.8 dBA
Recommended Amplifier Requirements25 — 100 W
Bass AlignmentFront ported - bass reflex. HiVE II port system
Power Handling (RMS)100 W
Crossover Frequency3.0 kHz
External Dimensions (Cabinet Only (H x W x D))250 x 140 x 140 mm (9.82 x 5.5 x 5.5")
External Dimensions (Including Table Stand (H x W x D))280 x 150 x 180 mm (11 x 5.88 x 7.06")
Weight (each)3.95 kg (8lb 11 oz)
