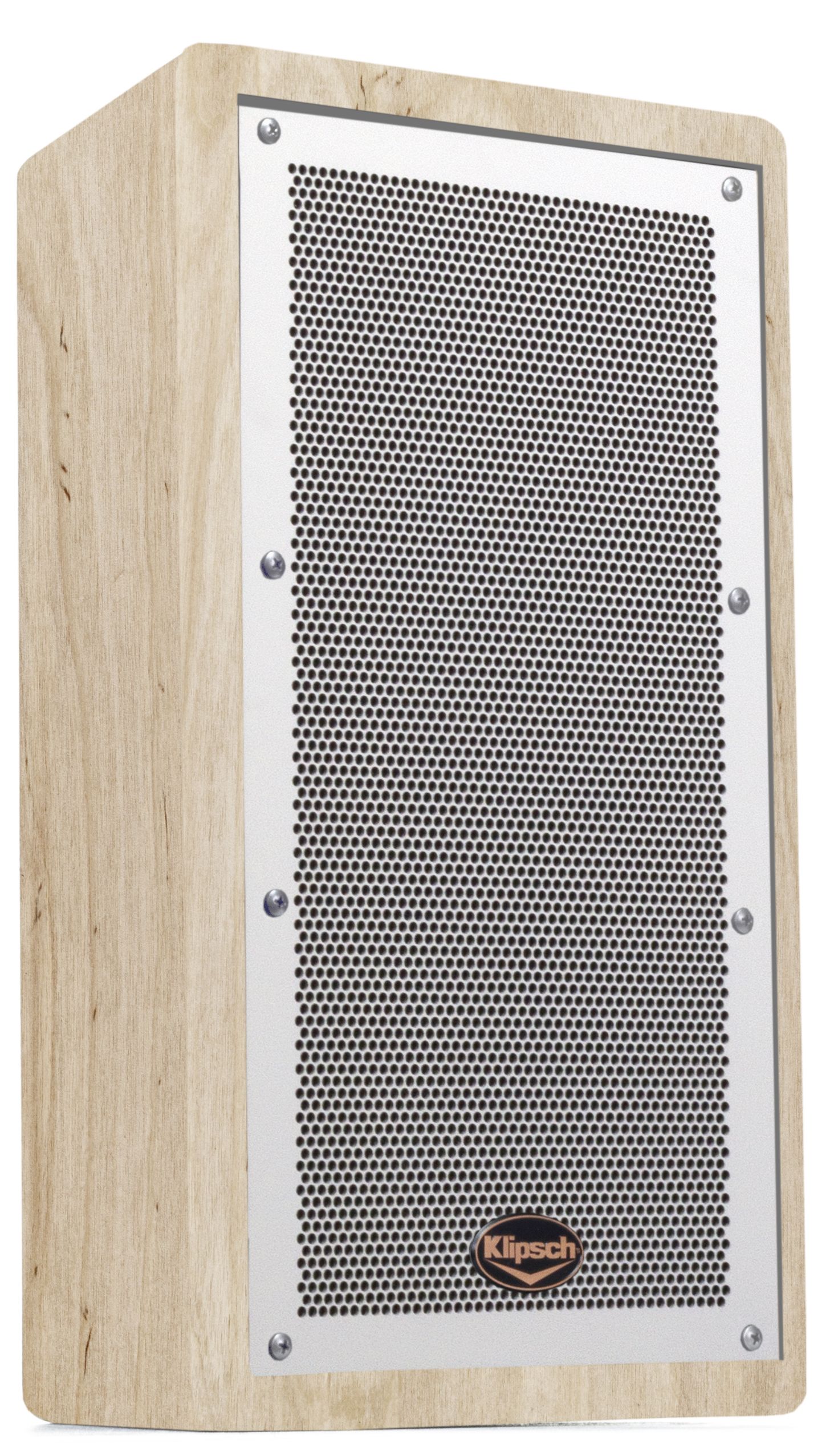

Klipsch® Trapezoidal Raw Birch 8" 2-Way Loudspeaker System

Model #: 1061962
At a Glance

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

Call for Best Price
$99,999.00Save $NaN

Call or Chat Now for

Best Price Options and Stock

Get to know this product.

The KI-102-SMA-II features a hybrid Tractrix "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket


  • Compact 22.5º symmetrical trapezoidal design
  • 115dB maximum continuous output
  • 8” woofer and 1” titanium diaphragm high-frequency compression driver
  • 90º X 90º modified Tractrix Horn
  • KLIP-circuit HF driver protection devices
  • Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
  • Available in Black, White or Raw MDF finish


Frequency Response88 Hz - 17 kHz (-10 dB @ 56 Hz)
Power Handling200 watts (31V); 800 watts peak
Maximum SPL115 dB Continuous; 121 dB Peak
Sensitivity95 dB
CoverageHorizontal: 90° +/- 20º 2.1 kHz - 19 kHz; Vertical: 90° +/- 30º 2.5 kHz - 19 kHz
Directivity Index (DI)7 dB +/- 1 dB 1 kHz - 17 kHz
Directivity Factor (Q)5
Nominal Impedance8 ohms, minimum 4.9 ohms @ 184 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency2 kHz
ComponentsOne K-81-ST 8" woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Input ConnectionTwo point barrier strip
Mounting Options2 screw: 1/4” x 20 Machine screw for SB-102 Bracket
Enclosure Material3/4" MDF
Height18.9” (48.00cm)
Width11.6” (29.46cm) front; 4.2” (10.67cm) rear
Depth9.3” (23.77cm)
Weight24 lbs. (10.90kg)
FinishesBlack, White and Raw MDF
AccessoriesSB-102 Mounting Bracket

Misc. Specs

Product Weight (lbs.)24
Impedance8 ohms
Maximum Power Handling (Watts)200 watts (31V) 800 watts peak
Depth (in.)9.3
Height (in.)18.9
Width (in.)11.6
Woofer Size8
