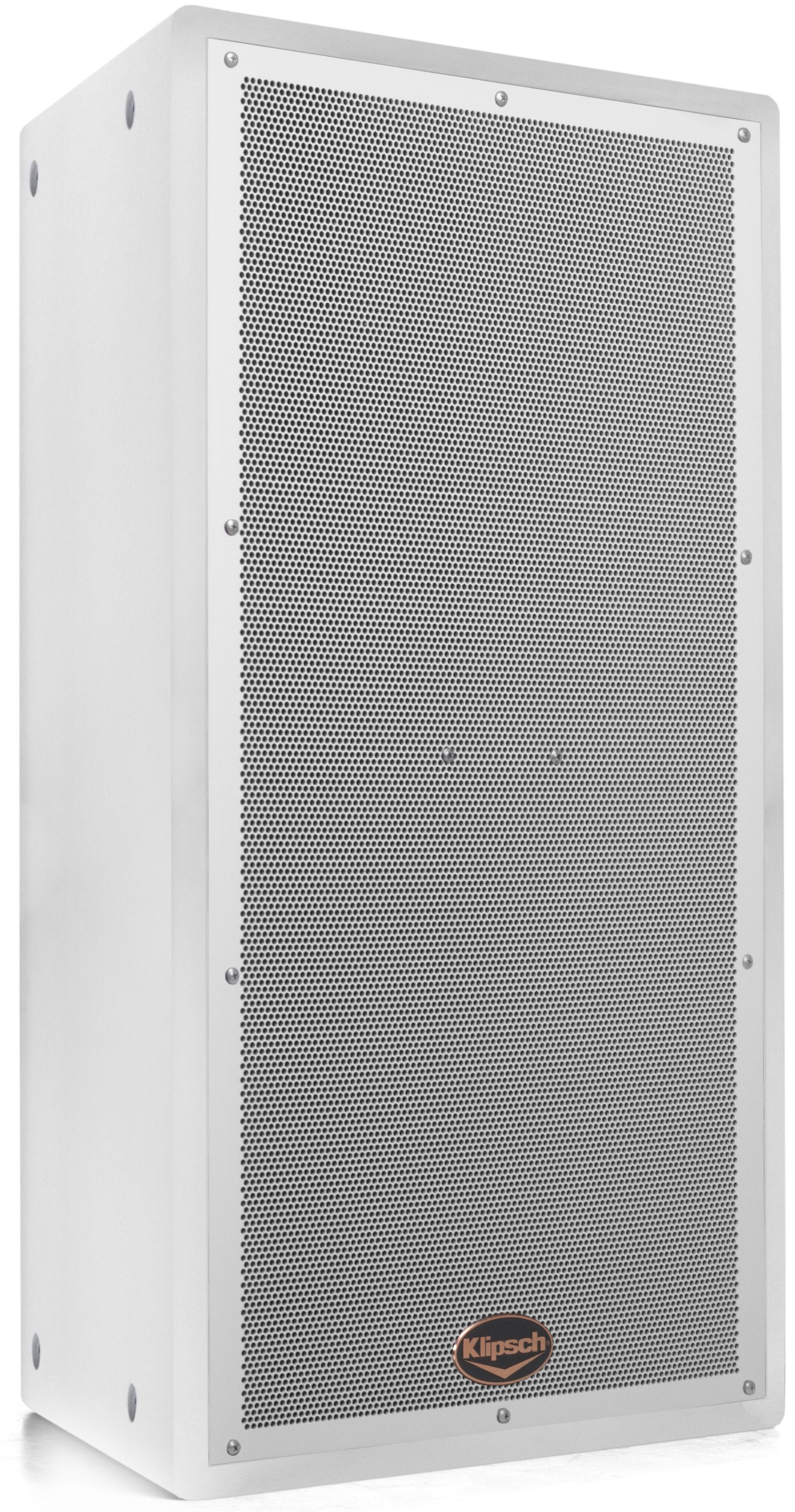

Klipsch® Professional White Trapezoidal 15" 3-Way Speaker

Model #: 1062025

At a Glance

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.

WarningProposition 65 Warning for California Residents
Klipsch® Professional White Trapezoidal 15" 3-Way Speaker

General Specs

Product Weight (lbs.)70
Impedance8 ohms
Maximum Power Handling (Watts)1600
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
Woofer Size15"

General

Frequency Response54 Hz - 20 kHz (-10 dB @ 38 Hz)
Power Handling400 watts (42V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 500 Hz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 4.4 ohms @ 106 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency1.26 kHz and 6.8 kHz
ComponentsOne K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight70 lbs. (31.81kg)
FinishesBlack, White and Raw Birch
BADGE

Klipsch® Professional White Trapezoidal 15" 3-Way Speaker

Model #: 1062025
229468
Model #: 1062025
Klipsch
$99,999.00

Call for Best Price

Call or Chat Now for

Best Price Options and Stock

At a Glance

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.

Get to know this product.

To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.

Compact 22.5º symmetrical trapezoidal design

User-rotatable midrange and HF module for optimized pattern control

16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility

15” cast frame heavy-duty woofer

1.5” and 1” titanium midrange and high-frequency compression drivers

Internal high current full-range crossover

KLIP circuit Mid and HF driver protection device

Available in Black, White or Raw Birch finish

Specifications

General Specs

Product Weight (lbs.)70
Impedance8 ohms
Maximum Power Handling (Watts)1600
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
Woofer Size15"

General

Frequency Response54 Hz - 20 kHz (-10 dB @ 38 Hz)
Power Handling400 watts (42V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 500 Hz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 4.4 ohms @ 106 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency1.26 kHz and 6.8 kHz
ComponentsOne K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight70 lbs. (31.81kg)
FinishesBlack, White and Raw Birch
