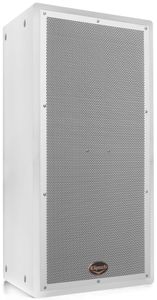

Klipsch® Professional Raw White High Output 15" 2-Way Speaker

Model #: 1062028

At a Glance

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

WarningProposition 65 Warning for California Residents
Klipsch® Professional Raw White High Output 15" 2-Way Speaker

General Specs

Product Weight (lbs.)76
Impedance8 ohms
Maximum Power Handling (Watts)2400
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
Woofer Size15"

Specifications

Frequency Response60 Hz - 18 kHz (-10 dB @ 35 Hz)
Power Handling600 watts (56V); 2400 watts peak
Maximum SPL127 dB Continuous; 133 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 13 kHz; Vertical: 60° +/- 20º 1.6 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 1.6 kHz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 5.1 ohms @ 112 Hz
Crossover Frequency1 kHz
ComponentsOne K-48-ST 15" woofer; One K-691 3” titanium compression driver on a K-510 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight76 lbs. (34.54kg)
FinishesBlack, White and Raw Birch
BADGE

Klipsch® Professional Raw White High Output 15" 2-Way Speaker

Model #: 1062028
229548
Model #: 1062028
Klipsch
$99,999.00

Call for Best Price

Call or Chat Now for

Best Price Options and Stock

At a Glance

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

Get to know this product.

The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.

Very high output capability with exceptional low-distortion clarity

Compact 22.5º symmetrical trapezoidal design

16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility

15” cast frame heavy-duty woofer

Large 3” (7.62cm) titanium diaphragm high-frequency compression driver

Internal high current full-range crossover

Available in Black, White or Raw Birch finish

Specifications

General Specs

Product Weight (lbs.)76
Impedance8 ohms
Maximum Power Handling (Watts)2400
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
Woofer Size15"

Specifications

Frequency Response60 Hz - 18 kHz (-10 dB @ 35 Hz)
Power Handling600 watts (56V); 2400 watts peak
Maximum SPL127 dB Continuous; 133 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 13 kHz; Vertical: 60° +/- 20º 1.6 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 1.6 kHz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 5.1 ohms @ 112 Hz
Crossover Frequency1 kHz
ComponentsOne K-48-ST 15" woofer; One K-691 3” titanium compression driver on a K-510 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight76 lbs. (34.54kg)
FinishesBlack, White and Raw Birch
