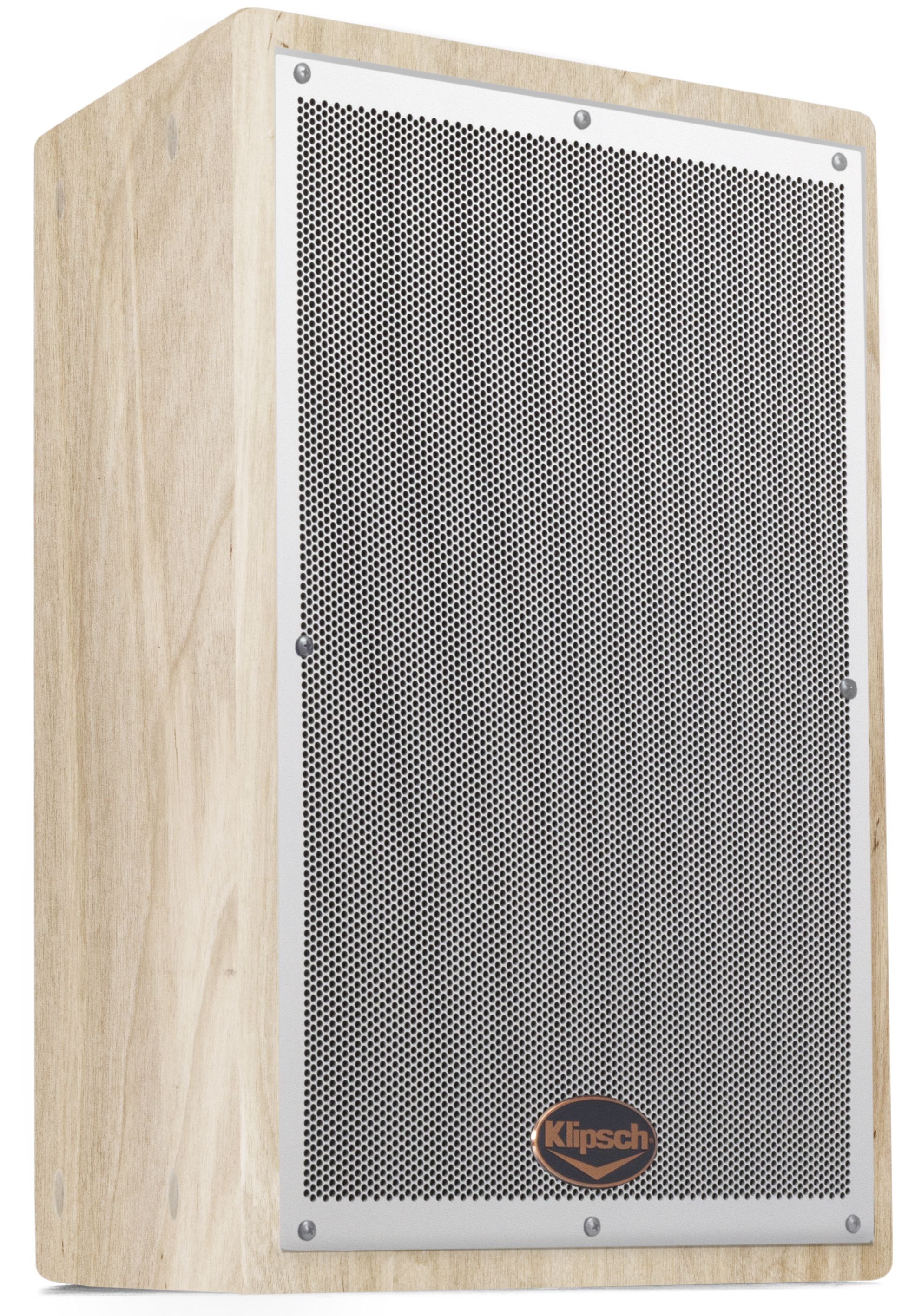

Klipsch® Professional Raw Birch Multi-Angle 12" 2-Way Loudspeaker

Model #: 1062023

At a Glance

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.

WarningProposition 65 Warning for California Residents
Klipsch® Professional Raw Birch Multi-Angle 12" 2-Way Loudspeaker

General Specs

Product Weight (lbs.)51
Impedance8 ohms
Maximum Power Handling (Watts)1200
Depth (in.)15.8
Height (in.)17
Width (in.)23
Woofer Size12

General

Frequency Response65 Hz - 20 kHz (-10 dB @ 47 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 40° +/- 20º 3.5 kHz - 20 kHz; Vertical: 60° +/- 20º 2 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 3 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4 ohms @ 146 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsTwelve 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height17” (43.18cm)
Width23” (58.42cm)
Depth15.8” (40.13cm)
Weight51 lbs. (23.18kg)
FinishesBlack, White and Raw Birch
BADGE

Klipsch® Professional Raw Birch Multi-Angle 12" 2-Way Loudspeaker

Model #: 1062023
229427
Model #: 1062023
Klipsch
$99,999.00

Call for Best Price

Call or Chat Now for

Best Price Options and Stock

At a Glance

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.

Get to know this product.

Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.

Multiple angle 45º and 65º asymmetrical design two-way speaker

Perfect for angled wall, corner, ceiling or under-balcony mounting

12” woofer and 1.75” titanium diaphragm high-frequency compression driver

60º X 40º Modified Tractrix horn

Internal high current full-range crossover

12 suspension points

KLIP-circuit HF driver protection devices

Available in Black, White or Raw Birch finish

Specifications

General Specs

Product Weight (lbs.)51
Impedance8 ohms
Maximum Power Handling (Watts)1200
Depth (in.)15.8
Height (in.)17
Width (in.)23
Woofer Size12

General

Frequency Response65 Hz - 20 kHz (-10 dB @ 47 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 40° +/- 20º 3.5 kHz - 20 kHz; Vertical: 60° +/- 20º 2 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 3 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4 ohms @ 146 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsTwelve 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height17” (43.18cm)
Width23” (58.42cm)
Depth15.8” (40.13cm)
Weight51 lbs. (23.18kg)
FinishesBlack, White and Raw Birch
