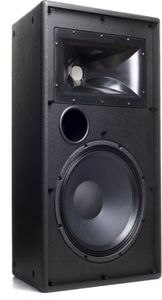

Klipsch® Professional Black KI-396-SMA-II High Output 15" 2-Way Loudspeaker-1062027

Model #: 1062027
174980
Klipsch
At a Glance

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

Call for Best Price
$3,049.00Save $NaN

Call or Chat Now for

Best Price Options and Stock


Get to know this product.

The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.

  • Very high output capability with exceptional low-distortion clarity
  • Compact 22.5º symmetrical trapezoidal design
  • 16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
  • 15” cast frame heavy-duty woofer
  • Large 3” (7.62cm) titanium diaphragm high-frequency compression driver
  • Internal high current full-range crossover
  • Available in Black, White or Raw Birch finish

Applications

  • Performing Spaces
  • Auditoriums and Houses of Worship
  • Bars and Music Clubs
  • Small/medium Sports Facilities
  • Theme Parks and Leisure Venues
  • Transportation Facilities
Specifications

General

Frequency Response60 Hz - 18 kHz (-10 dB @ 35 Hz)
Power Handling600 watts (56V); 2400 watts peak
Maximum SPL127 dB Continuous; 133 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 13 kHz; Vertical: 60° +/- 20º 1.6 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 1.6 kHz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 Ohms, minimum 5.1 Ohms @ 112 Hz
Crossover Frequency1 kHz
ComponentsOne K-48-ST 15" woofer; One K-691 3” titanium compression driver on a K-510 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight76 lbs. (34.54kg)
FinishesBlack, White and Raw Birch

Misc. Specs

Product Weight76
Impedance8 ohms
Maximum Power Handling (Watts)2400
Depth (in.)16
Height (in.)34.3
Woofer Size15"
