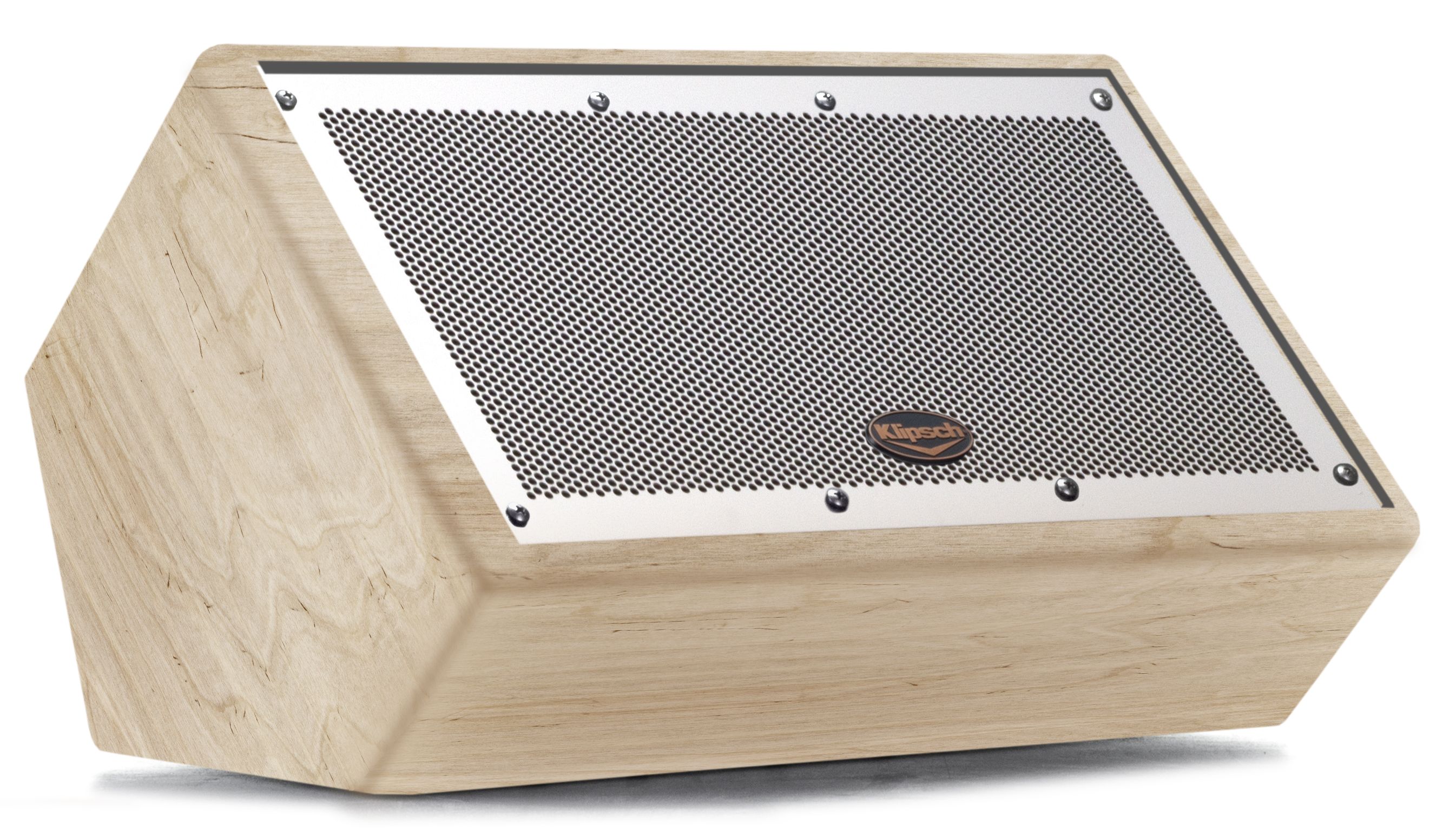

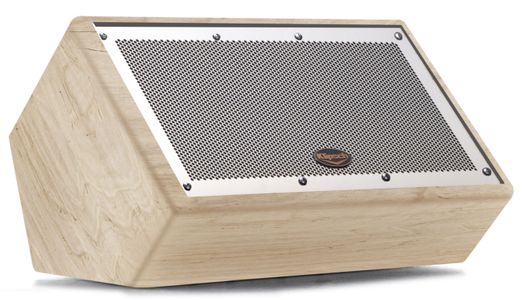

Klipsch® Multi-Angle Raw Birch 8" 2-Way Loudspeaker

Model #: 1062010
229393
Klipsch
At a Glance

The KI-172-SMA-II is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°. Designed to be installed where placement at an angle is required and space is limited, the KI-172-SMA-II is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.

Call for Best Price
$99,999.00Save $NaN

Call or Chat Now for

Best Price Options and Stock


Get to know this product.

The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 "U"-shaped bracket.

  • Compact with sides slanted at 65º and 45º
  • Excellent for placement at an angle or tight spaces
  • 8” woofer and 1” titanium diaphragm high-frequency compression driver
  • 90º X 90º modified Tractrix® Horn
  • KLIP-circuit HF driver protection devices
  • Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
  • Available in Black, White or Raw MDF finish
Specifications

Specifications

Frequency Response74 Hz - 17 kHz (-10 dB @ 48 Hz)
Power Handling200 watts (31V); 800 watts peak
Maximum SPL115 dB Continuous; 121 dB Peak
Sensitivity95 dB
CoverageHorizontal: 90° +/- 30º 2.5 kHz - 20 kHz; Vertical: 90° +/- 20º 2.1 kHz - 20 kHz
Directivity Index (DI)7 dB +/- 1.5 dB 900 Hz - 18 kHz
Directivity Factor (Q)5
Nominal Impedance8 ohms, minimum 4.7 ohms @ 184 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency2 kHz
ComponentsOne K-81-ST 8" woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Input ConnectionTwo point barrier strip
Mounting Options4 - 1/4”- 20 for Mounting Bracket; 2 - 1/4”- 20 for SB-102 Bracket
Enclosure Material3/4" MDF
Height11.5” (29.27cm)
Width18.9” (48.00cm)
Depth10.6” (26.92cm)
Weight27 lbs. (12.24kg)
FinishesBlack, White and Raw MDF
AccessoriesSB-102 Mounting Bracket

Misc. Specs

Product Weight (lbs.)27
Impedance8 ohms
Maximum Power Handling (Watts)200 watts (31V) 800 watts peak
Depth (in.)10.6
Height (in.)11.5
Width (in.)18.9
Woofer Size8
