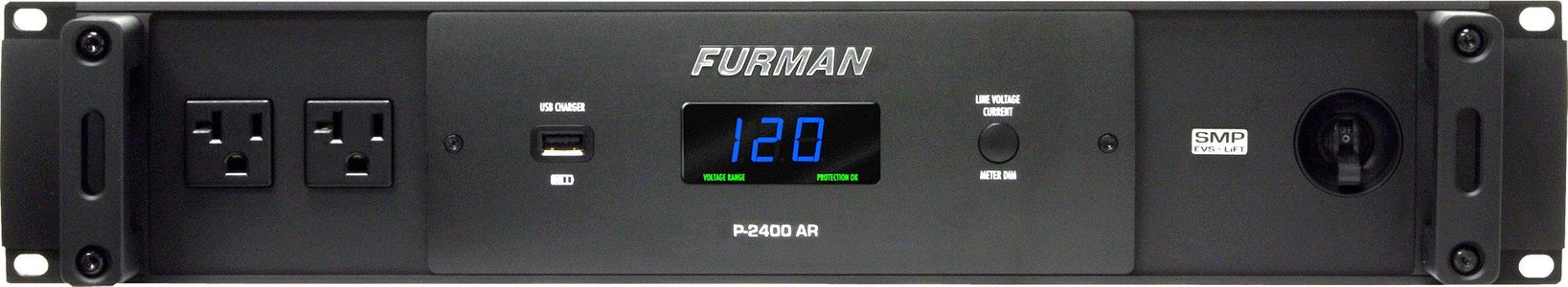

The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage.
Response Time | 1 Nanosecond; Maximum Surge Current:6,500 AMPS |
---|
Warning | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
---|
Filtration Technology | LiFT |
---|---|
Filtration Rating | 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz |
Signal Line Protection | No |
Master Pack Quantity | 1 |
AC Protection Technology | True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination |
---|---|
Under-Voltage Shutoff | 90V |
Over-Voltage Shutoff | 140 VAC |
Maximum Current Rating | 15 (Amps) |
Maximum Current Rating | 20 (Amps) |
Initial Clamping Level | 188 VAC peak @ 3,000 Amps |
Depth (in.) | 12 |
---|---|
Width (in.) | 19 |
Height (in.) | 3.5 |
Number Of Outlets | 14 |
Cord Length (Ft) | 10 |
Shipping Depth (in.) | 23.9 |
Shipping Width (in.) | 22.8 |
Shipping Height (in.) | 10.4 |
Manufacturer Warranty | 5 Year |
Product Weight (lbs.) | 39 |
Family | Prestige Series |
---|---|
Line Voltage | 120 (Volts) |
Number of Outlets | 14 |
Number of Isolated Banks | 2 |
Outlet Descriptions | All 14 outlets regulated and conditioned - 12 on the rear panel and 2 on the front |
Rack Mountable | Yes |
Rack Ears Included | Yes |
Front Panel Meter (S) | LED voltmeter/ammeter displays incoming voltage and output current draw |
Front Media Light (S) | No |
Control | Front panel: - On/Off switch - Light dimmer knob |
Voltage Regulation | Regulation capture range: 97 VAC to 137 VAC |
Compliance | cETLus |
USB Charging | 1 front panel USB charger |
Low Voltage Trigger | N/A |
AC Power Cord | 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug |
Power Consumption | 13 Watts |
Call or Chat Now for
Best Price Options and Stock
The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.
Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.
True RMS Voltage Regulation - True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
Surge Protection - Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration - LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection - Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights - LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Voltmeter / Ammeter - Large LED voltmeter/ammeter displays incoming voltage and output current draw .
Isolated Banks - Isolated outlet banks minimize inter-component interference and noise contamination.
USB Charger - Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
20 Amp Rating - 20 Amp rating featuring a high inrush thermal circuit breaker for added protection.
14 Total Outlets - 14 total outlets (twelve rear panel outlets and two front panel convenience outlet).
Family | Prestige Series |
Line Voltage | 120 (Volts) |
Number of Outlets | 14 |
Number of Isolated Banks | 2 |
Outlet Descriptions | All 14 outlets regulated and conditioned - 12 on the rear panel and 2 on the front |
Rack Mountable | Yes |
Rack Ears Included | Yes |
Front Panel Meter (S) | LED voltmeter/ammeter displays incoming voltage and output current draw |
Front Media Light (S) | No |
Control | Front panel: - On/Off switch - Light dimmer knob |
Voltage Regulation | Regulation capture range: 97 VAC to 137 VAC |
Compliance | cETLus |
USB Charging | 1 front panel USB charger |
Low Voltage Trigger | N/A |
AC Power Cord | 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug |
Power Consumption | 13 Watts |
AC Protection Technology | True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination |
Under-Voltage Shutoff | 90V |
Over-Voltage Shutoff | 140 VAC |
Maximum Current Rating | 15 (Amps) |
Maximum Current Rating | 20 (Amps) |
Initial Clamping Level | 188 VAC peak @ 3,000 Amps |
Filtration Technology | LiFT |
Filtration Rating | 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz |
Signal Line Protection | No |
Master Pack Quantity | 1 |
Response Time: | 1 Nanosecond; Maximum Surge Current:6,500 AMPS |
Warning | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
Depth (in.) | 12 |
Width (in.) | 19 |
Height (in.) | 3.5 |
Number Of Outlets | 14 |
Cord Length (Ft) | 10 |
Shipping Depth (in.) | 23.9 |
Shipping Width (in.) | 22.8 |
Shipping Height (in.) | 10.4 |
Manufacturer Warranty | 5 Year |
Product Weight (lbs.) | 39 |
