Definitive Technology® Disappearing™ In-Wall Series 5.25" In-Ceiling/In-Wall Speaker

Definitive Technology

Model #:

DI 5.5BPS

Model #: DI 5.5BPS
15714
Definitive Technology
$197.00
WEST ALLIS
MUST BUY 2
DISPLAYS

At a Glance

Product Dimensions 12.63"h x 6.81"w x 3.87"d

With Balanced Double Surround System (BDSS™) technology, DI 5.5BPS surround speakers deliver the bass output and dynamic range of traditional 8" speakers. Hidden within your walls or ceiling, lifelike sonic performance and broad, even dispersion become even more impressive. While other in-wall speakers fall short on sound quality and stealth, the DI 5.5 BPS sets an impossibly high standard.Read More

Available in Store Only
Sale $197.00

$499.00

Save $302.00

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

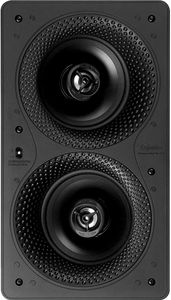

DI 5.5BPS Disappearing™ Rectangular Bipolar In-Wall / In-Ceiling Surround Speaker

White Finish

Powerful sound performance comes through with Bipolar sound dispersion and the latest-gen BDSS™ drivers

Flangeless design, micro-perf grille and flush mounting minimize visibility

Pure aluminum dome tweeters and adjustable high-definition crossover produce pristine highs

Rigid PolyStone™ baskets eliminate unwanted vibrations to prevent ringing and minimize distortion

Pure Aluminum

The pivoting pure aluminum dome tweeter features a uniquely constructed housing, eliminating diffraction distortions typical with traditional speakers for spectacular audio performance.

Balanced Dispersion

BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.

Adjustable Crossover

A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.

Designed for Invisibility

With a minimal visible surface area, hidden flange architecture and micro-perf grille, the DI 5.5BPS disappears into any environment, without the need for custom sheetrock or spackle work.

Useful Documents
Manual
Product Info Sheet
Specifications

General Specs

Product Weight (lbs.)8.4
MPNUEZA
Color Finish NameWhite
ColorWhite
Impedance8 ohms
Number of Speakers1
Speaker TypeIn-Ceiling Speakers
Depth (in.)3.87
Height (in.)12.63
Width (in.)6.81

Specifications

Speaker TypeIn-Ceiling Speaker
Sold AsEach
ColorWhite
AvailabilityUS
Depth3.88" (9.86 cm)
Weight8.4 lbs (3.81 kg)
Grille Dimensions13.63" (34.62 cm) h x 7.75" (19.69 cm) w
Shipping Carton6.75" (17.15 cm) h x 15.56" (39.52 cm) w x 9.75" (24.77 cm) d
Shipping Weight11 lbs (4.99 kg)

Driver Complement

Pivoting Dome Tweeter - Tweeter(2) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter - Tweeter
BDSS Bass/Mid - Mid/Woofer(2) 5.25" (13.34 cm) d (Round) BDSS Bass/Mid - Mid/Woofer

In-Wall Mount

ShapeRectangle
Dimensions12.63" (32.08 cm) h x 6.81" (17.3 cm) w
Clearnace Required for Mounting Dogs (add to each side of cutout)1" (2.54 cm)

In-Ceiling Mount

ShapeRectangle
Dimensions12.63" (32.08 cm) h x 6.81" (17.3 cm) w

Inputs

Speaker Inputs(1) Pair of Heavy Duty, Spring Loaded - na

Audio Quality

Total Frequency Response28 Hz to 30 Hz
Nominal Impedance8 Ohms
Max Sensitivity (1 watt @ 1 meter)89 dB

Crossover

TypeA/V Receiver Crossover Settings
A/V Receiver Crossover SettingsSmall (60 Hz)

Warranty

Cabinet Warranty5 Years
Drivers Warranty5 Years

Included Accessories

Wall Mounting Template1
Paintable Magnetic Grille1
