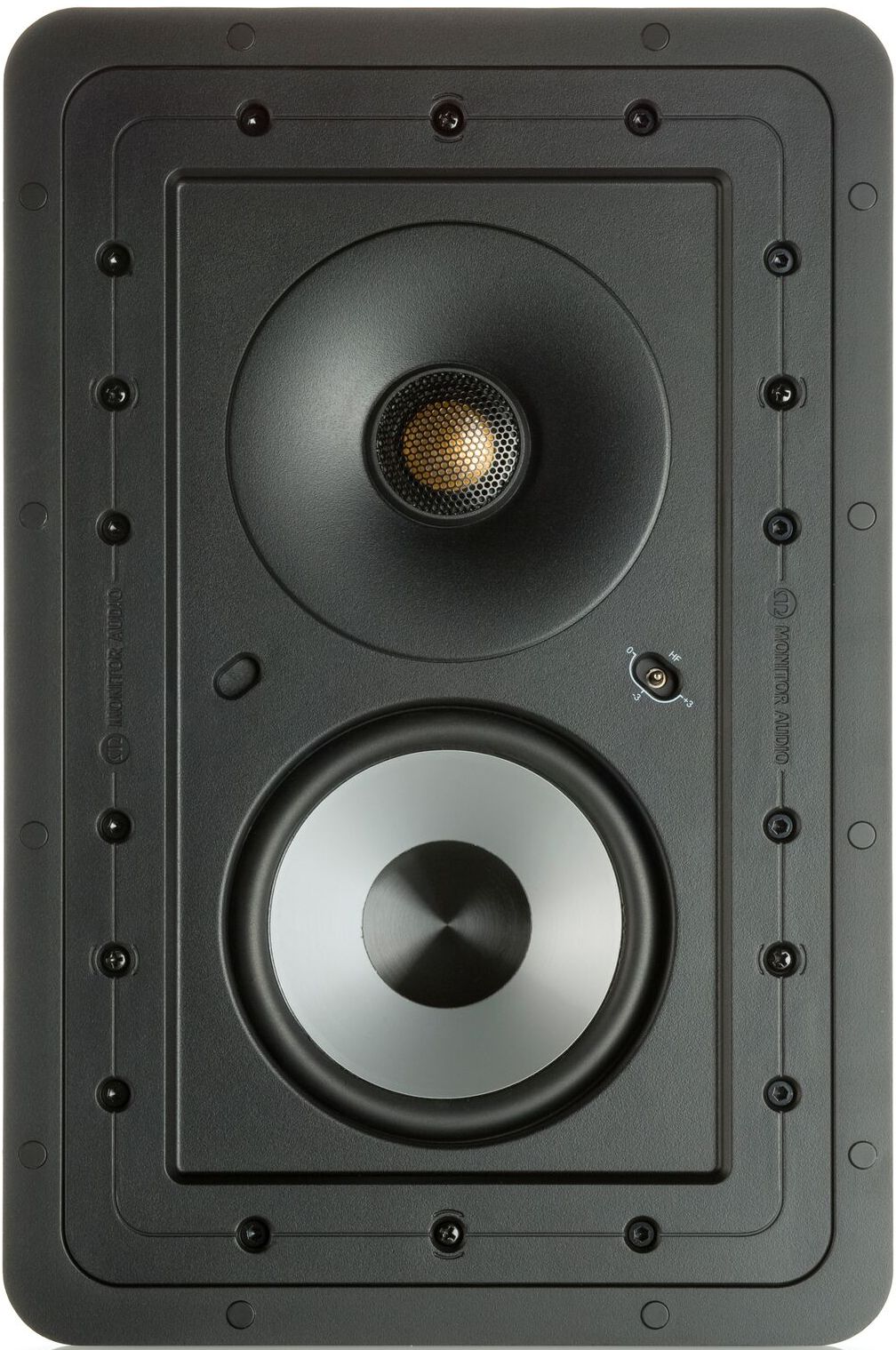

Monitor Audio CP-WT150 In-Wall Speaker

Model #: CPWT150

At a Glance

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.

WarningProposition 65 Warning for California Residents
Monitor Audio CP-WT150 In-Wall Speaker

Misc. Specs

Product Weight (lbs.)5.88
Frequency Response75 Hz - 25 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)50
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)50
Number of Speakers1
Sensitivity85
Speaker TypeIn-Wall Speakers

Additional Specification

Frequency Response75 Hz - 25 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)85 dB
Maximum SPL102.8 dBA
Power Handling (RMS)50 W
Recommended Amplifier Requirements20 - 50 W
Crossover Frequency2.8 kHz @ 12 dB / Octave
Drive Unit Complement2-Way, 5" MMP II cone bass driver, 1" C-CAM Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Dimensions (H x W x D)360.5 x 242 mm (143/16 x 91/2")
Overall Depth (Including Grille)102 mm (4")
Cut-Out Dimensions326 x 207 mm (1213/16 x 81/8")
Mounting Depth96 mm (33/4")
Fixing Type6 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled ABS Plastic (RoHS2 Compliant)
ConnectionGold plated 'push' type terminals
Weight2.65 kg (5 lb 14 oz)
Pre-Construction BracketWB6 Pre-Construction Bracket (Purple)
BADGE

Monitor Audio CP-WT150 In-Wall Speaker

Model #: CPWT150
Call for Best Price

Call or Chat Now for

Best Price Options and Stock

At a Glance

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.

Get to know this product.

Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.

High overall efficiency.

High frequency level adjustment (+/-3 dB).

Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

Magnetic and easily removable steel grille.

Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.

Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Additional Specification

Frequency Response75 Hz - 25 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)85 dB
Maximum SPL102.8 dBA
Power Handling (RMS)50 W
Recommended Amplifier Requirements20 - 50 W
Crossover Frequency2.8 kHz @ 12 dB / Octave
Drive Unit Complement2-Way, 5" MMP II cone bass driver, 1" C-CAM Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Dimensions (H x W x D)360.5 x 242 mm (143/16 x 91/2")
Overall Depth (Including Grille)102 mm (4")
Cut-Out Dimensions326 x 207 mm (1213/16 x 81/8")
Mounting Depth96 mm (33/4")
Fixing Type6 position Tri-Grip dog leg fixings
Construction MaterialMineral Filled ABS Plastic (RoHS2 Compliant)
ConnectionGold plated 'push' type terminals
Weight2.65 kg (5 lb 14 oz)
Pre-Construction BracketWB6 Pre-Construction Bracket (Purple)

Misc. Specs

Product Weight (lbs.)5.88
Frequency Response75 Hz - 25 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)50
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)50
Number of Speakers1
Sensitivity85
Speaker TypeIn-Wall Speakers
