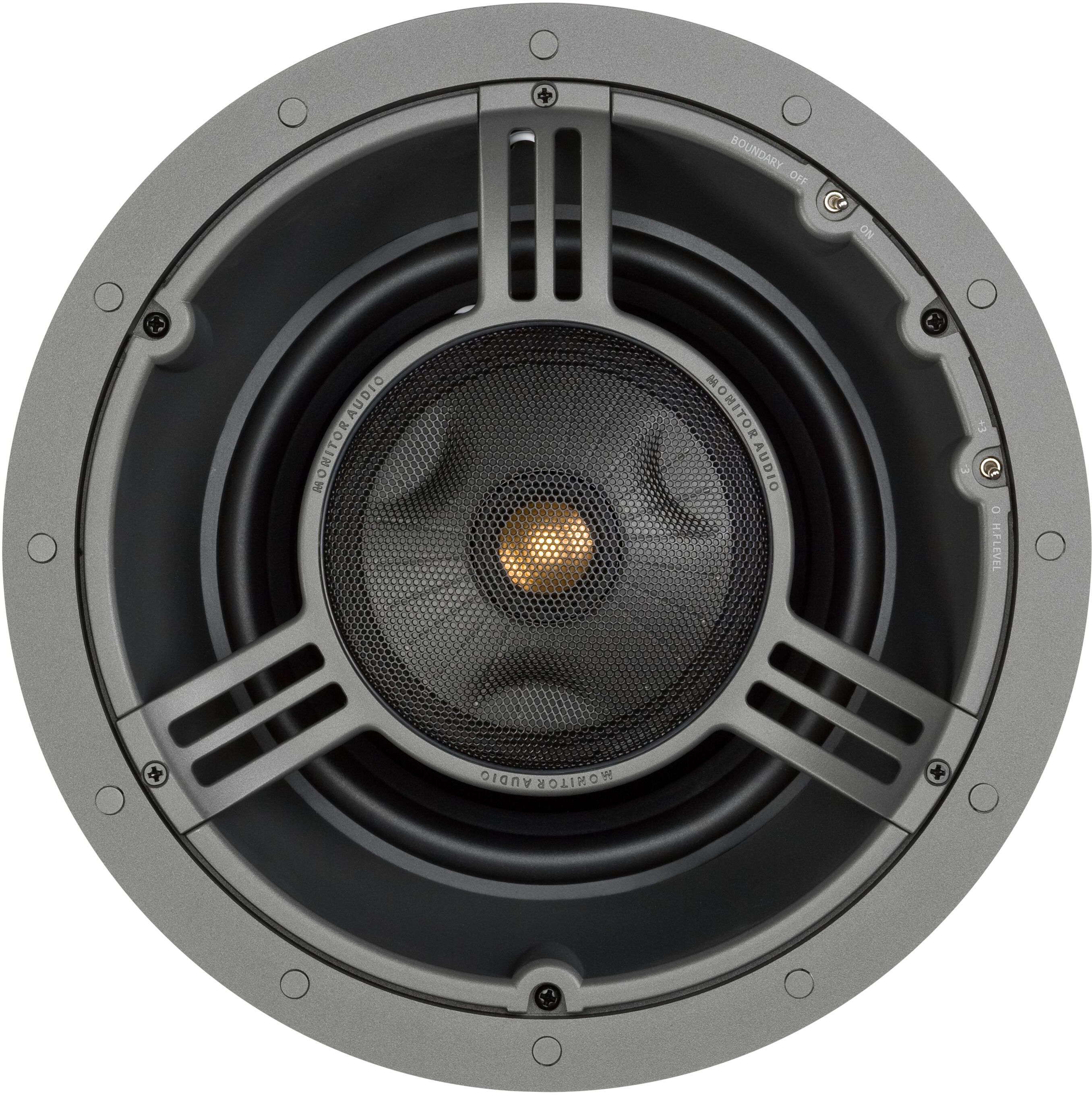

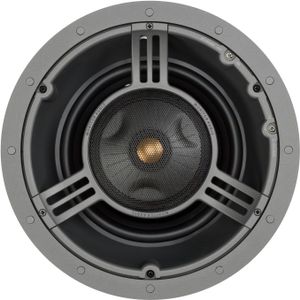

Monitor Audio C380-IDC In-Ceiling Speaker


Model #:

CC380IDC

Model #: CC380IDC
273243
Monitor Audio
$99,999.00

At a Glance

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.Read More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

3-way design provides deeper bass

Higher system output and greater power handling

Optional square grille can be used with this model

This product is now available to use with home theatre design software, The CEDIA Designer.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)8
Frequency Response45 Hz – 30 kHz
Manufacturer WarrantyLimited Lifetime
RMS Power Handling (Watts)150
ColorBlack
Impedance6 ohms
Maximum Power Handling (Watts)150
Number of Speakers1
Sensitivity90
Speaker TypeIn-Ceiling Speakers

Additional Specifications

Frequency Response45 Hz – 30 kHz
Nominal Impedance6 ohms
Sensitivity (1W@1M)90 dB
Maximum SPL112 dBA
Power Handling (RMS)150 W
Recommended Amplifier Requirements40 – 150 W
Drive Unit Complement8” C-CAM cone bass driver featuring RST pivoting IDC module housing, 4” C-CAM RST inverted mid range driver, 1” C-CAM Gold Dome tweeter
Adjustment ControlsHF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch
Overall Diameter (Including Grille)285 mm (11 1/4")
Overall Depth (Including Grille)161 mm (6 5/16")
Mounting Depth157 mm (6 3/16")
Cut-Out Hole Diameter247 mm (9 3/4")
Optional Square Grille - Outer Dimensions285 x 285 mm (11 1/4")
Fixing Type3 position Tri-Grip dog fixings
Construction MaterialMineral filled ABS, RoHS compliant
Weight3.64 kg (8 lb)
Pre-Construction BracketCB8 Pre-Construction Bracket (Green)
Back BoxCMBOX-R
