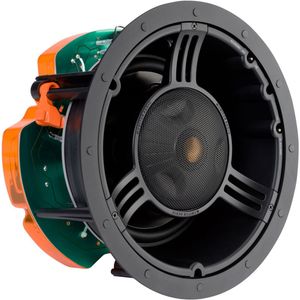

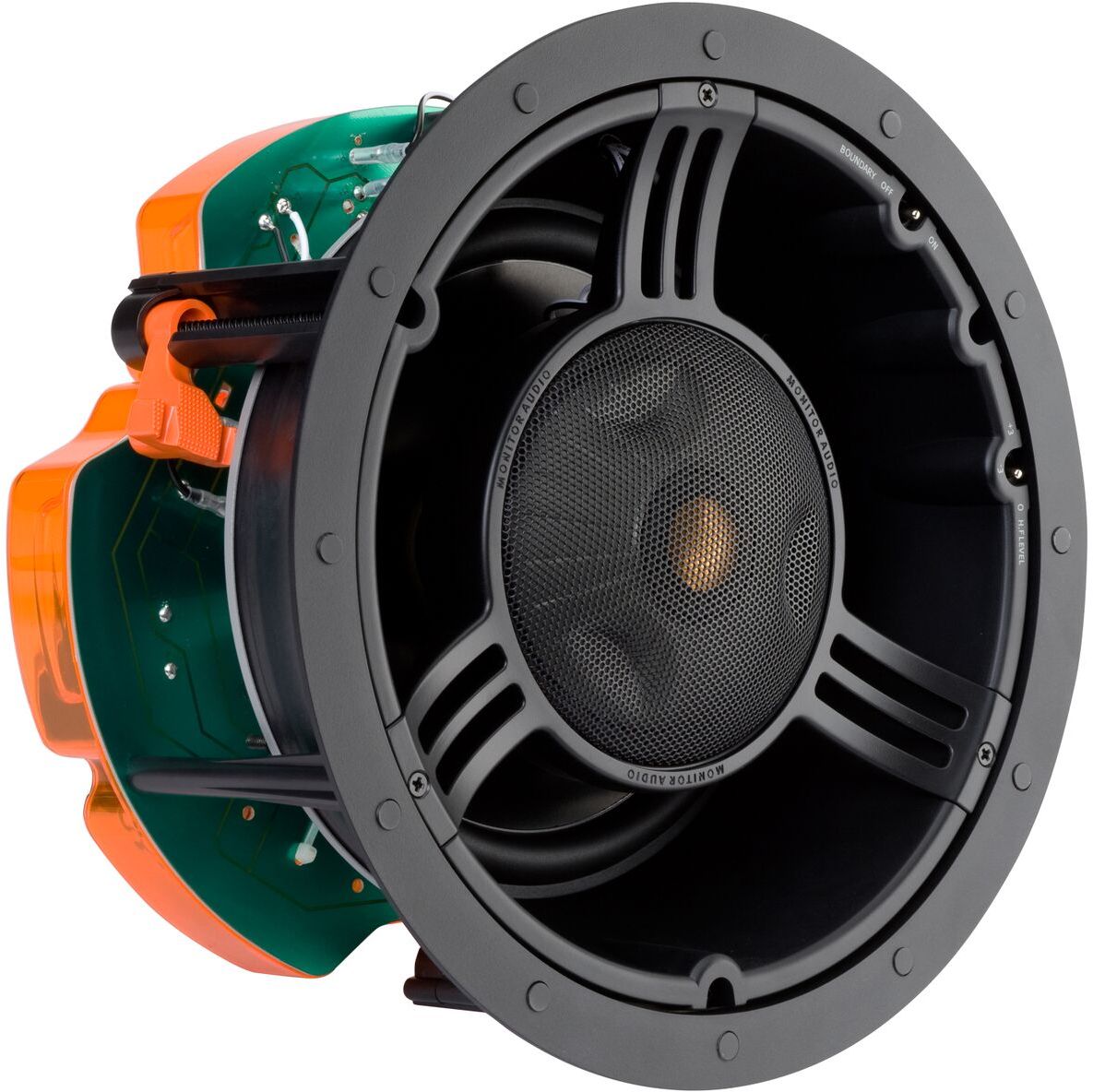

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.Read More
Call or Chat Now forBest Price Options and Stock
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Optional square grille can be used with this model.
General Specs | |
| Product Weight (lbs.) | 6.13 |
| Frequency Response | 50 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black/Orange |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 120 |
| Number of Speakers | 1 |
| Sensitivity | 90 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 50 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8” C-CAM cone bass driver, pivoting IDC module housing, 4” C-CAM RST inverted mid range driver, 1” C-CAM Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Overall Depth (Including Grille) | 161 mm (6 5/16") |
| Mounting Depth | 157 mm (6 3/16") |
| Cut-Out Hole Diameter | 247 mm (9 3/4") |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm (11 1/4") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3.42 kg (7 lb 8 oz) |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
| Back Box | CCBOX-R / CMBOX-R |
