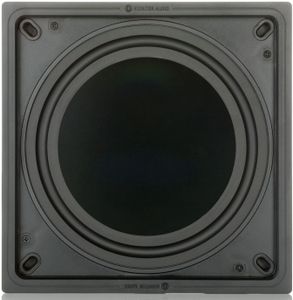

Monitor Audio 10" In-Wall Subwoofer-Black

Monitor Audio

Model #:

IWS-10 Subwoofer

Model #: IWS-10 Subwoofer
70647
Monitor Audio
$99,999.00

At a Glance

Product Dimensions 12.38"h x 12.38"w x 3.94"d

Monitor Audio 10" In-Wall Subwoofer-Black with large vented pole design to reduce power compression, lower distortion and improved power handlingRead More

Call for Best Price

Call or Chat Now forBest Price Options and Stock

Get to know this product.

Product Overview

Product Overview

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10mm (3/8”) RDT® material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.

It features Monitor Audio's patented Tri-Grip clamping system and paintable trim-less grille and frame edge.

  • Rigid Die-cast chassis/basket
  • Large vented pole design to reduce power compression, lower distortion and improved power handling
  • High tech RDT flat ‘sandwich’ cone technology
  • High quality gold plated ‘push’ type terminal – for easy installation
  • 8 ohm impedance
  • 50mm diameter voice coil with black anodised former –Improves convection cooling effects
  • +/- 10mm of excursion – results in controlled bass at low frequencies and delivers high SPL
  • Patented Tri-Grip fixing system
  • Trim-less, low profile, paintable grille
Useful Documents
Installation Guide
Subwoofer Safety Instructions
Product Sheet
Specifications

General Specs

Depth (in.)3.94
Width (in.)12.38
Height (in.)12.38
Impedance8 ohms
RMS Power Handling (Watts)150
Number of Speakers1
Manufacturer Warranty2 Year Parts & Labor
Maximum Power Handling (Watts)150

Connections

Connector Type:Gold Plated "Push" Type

Construction

Driver Component Size:10"

Dimensions

Mount Depth:3.5

Other

Sold As:Each

Specifications

Sensitivity:86 dB
Frequency Response:28 Hz — 120 Hz

Styling

Color:Black
