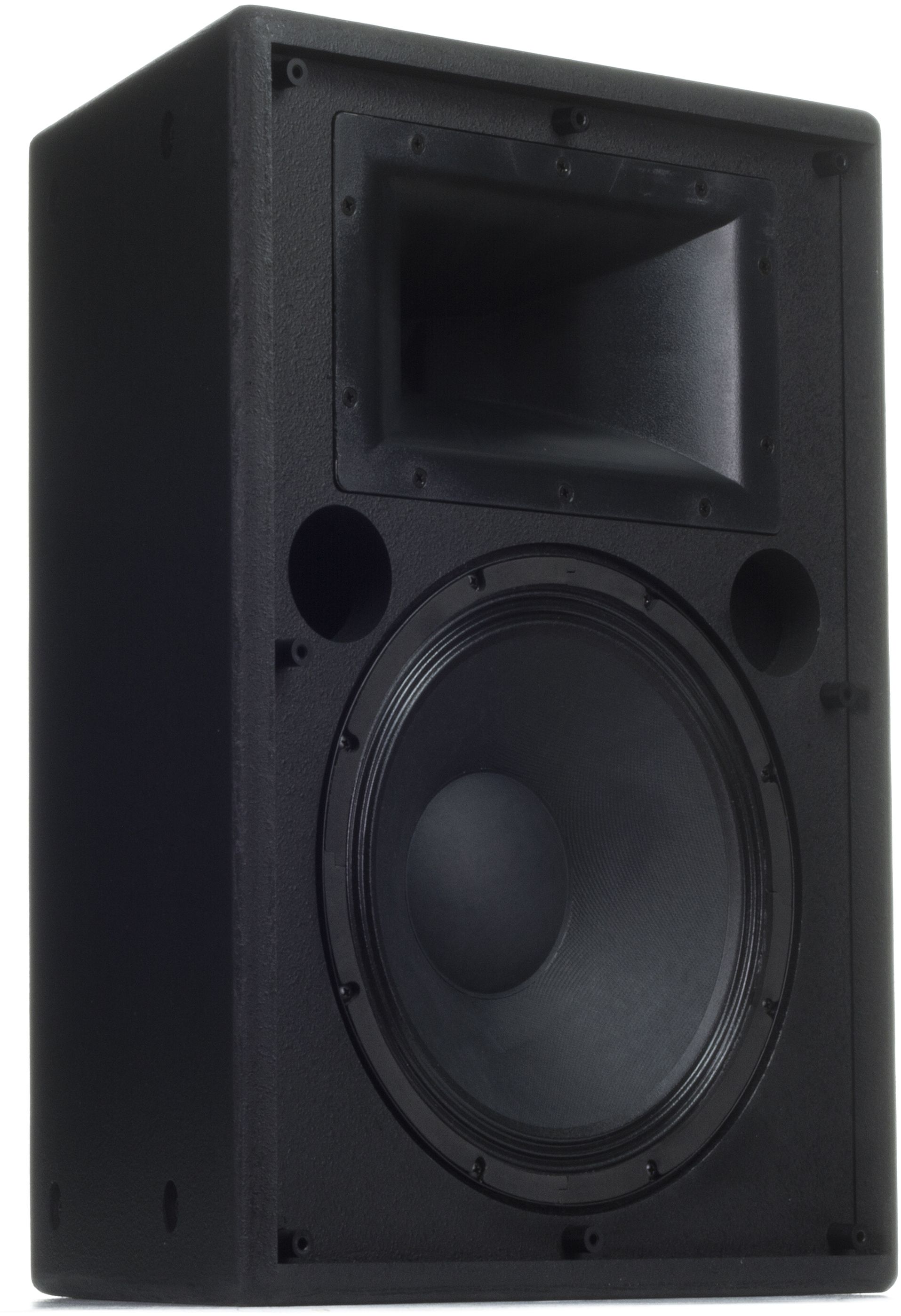

Klipsch® Professional Black KI-272-SMA-II Multi-Angle 12" 2-Way Loudspeaker-1062021

Model #: 1062021
174968
Klipsch
At a Glance

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.

Call for Best Price
$1,469.00Save

Call or Chat Now for

Best Price Options and Stock


Get to know this product.

Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.

  • Multiple angle 45º and 65º asymmetrical design two-way speaker
  • Perfect for angled wall, corner, ceiling or under-balcony mounting
  • 12” woofer and 1.75” titanium diaphragm high-frequency compression driver
  • 60º X 40º Modified Tractrix horn
  • Internal high current full-range crossover
  • 12 suspension points
  • KLIP-circuit HF driver protection devices
  • Available in Black, White or Raw Birch finish

Applications

  • Restaurants
  • Schools
  • Houses of worship
  • Health clubs
  • AV production environments
  • Auditoriums
Specifications

General

Frequency Response65 Hz - 20 kHz (-10 dB @ 47 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 40° +/- 20º 3.5 kHz - 20 kHz; Vertical: 60° +/- 20º 2 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 3 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4 ohms @ 146 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsTwelve 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height17” (43.18cm)
Width23” (58.42cm)
Depth15.8” (40.13cm)
Weight51 lbs. (23.18kg)
FinishesBlack, White and Raw Birch

Misc. Specs

Product Weight51
Impedance8 ohms
Maximum Power Handling (Watts)1200
Depth (in.)15.8
Height (in.)17
Width (in.)23
Woofer Size12"
WarningProposition 65 Warning for California Residents
